ADH-4906

SPEAKER CABLE - 4 x 4mm² - OD: 13,5mm

This range of SYNTAX® SPEAKER cables has been developed to obtain maximum flexibility and excellent mechanical properties. The main characteristic is the extremely dense stranding of the conductors’ section, which results in high flexibility, increased conductivity and brilliance of sound. They feature large conductor size to minimize resistance to high power conduction. All the conductors are numbered and maintained properly clustered inside the outer PVC sheath thanks to the internal lined ridges, even under heavy usage and continuous rewinding. The cores are talc dusted to slide against one another, thus granting optimal handling. The external diameters is perfectly suitable for usage with the most commonly used power connectors. Finally, the arctic polymer PVC jacket allows good flexibility and handling in a wide range of temperatures.

Heat shrink glue transparent

H-2(3X)
Thin-wall heat shrink tubing / flexible / flame retardant / 3:1

Features:
• Crosslinked Polyolefin
• Shrink ratio: 3:1
• Flame retardant
• General purpose
• High flexibility

Approvals:
• UL224 125 °C VW-1 600 V file E204071
• CSA file no.: 1934614
• Meets: RoHS, Sony-SS-00259

Application:
• Operating temperature: -55 °C to +125 °C
• Minimum shrink temperature: +70 °C
• Minimum full recovery temperature: +100 °C
• Longitudinal change: 0 ± 10% max.
Order information:

• Color: black
• Other colors: red, blue, yellow, green, white, transparent (flame retardant class 2)

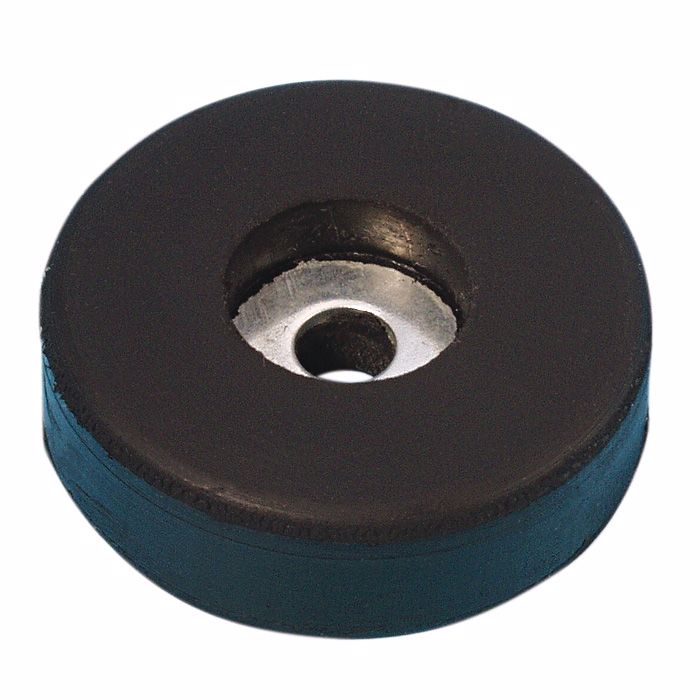

Rubber Feet 38*20mm

Product type Feet and Skids Type Feet round Material Soft PVC with PP core Colour Black Diameter 38 mm Height 20 mm Mounting hole diameter 6.5 mm stackable no Recessed steel disc yes Weight 0.03 kg

Declaration of Conformity

2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell

2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks. Features & Benefits •All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection •Extra slim 1/4" plug for highest packing density •Robust diecast shell in stylish design •Proven chuck type strain relief for reliable cable retention •Sleek design for best handling convenience •Precision machined one-piece contacts - avoid hook up of tip contact
