Technical specifications
Conductor 1 CU 7x0,75mm
Conductor 1 (resistance) 6 Ohm/Km
Dielectric PE 7,2 mm
Braid 1 CU 94 %
External Jacket PVC Black
External Jacket (diameter) 10,3 mm
Impedance 50 ± 2 Ohm
Mutual/coax capacity 98 ± 2 pF/m
Velocity Ratio 66 %
Screening Efficency
(30-1000 MHz) > 55 dB
Temperature rating -20/+85 °C
Screen Resistance 5,9 Ohm/Km
Test Voltage 2 KVac
Minimun bending radius 10 x O.D.
Weight 15 Kg/100m

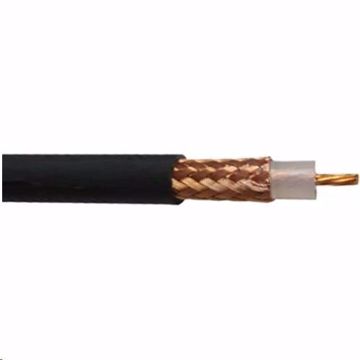

The Belden RG213/U coaxial cable by has an outer diameter of 10.3 mm and a reel length of 100 m. This Coax cable has a capacitance of 101 pF/m, a velocity ratio of 66%.
• A coaxial communication cable, great for communicating!
• Black polyvinyl chloride (PVC) outer sheath
• Bare inner conductor with PE Insulation
• Impedance of 50 Ohm
• Low and high power RF connections
Technical specifications
Conductor 1 CU 7x0,75mm
Conductor 1 (resistance) 6 Ohm/Km
Dielectric PE 7,2 mm
Braid 1 CU 94 %
External Jacket PVC Black
External Jacket (diameter) 10,3 mm
Impedance 50 ± 2 Ohm
Mutual/coax capacity 98 ± 2 pF/m
Velocity Ratio 66 %
Screening Efficency
(30-1000 MHz) > 55 dB
Temperature rating -20/+85 °C
Screen Resistance 5,9 Ohm/Km
Test Voltage 2 KVac
Minimun bending radius 10 x O.D.
Weight 15 Kg/100m
