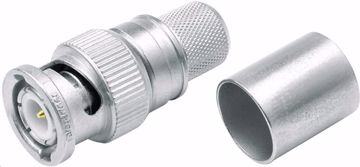

BNC Straight Plug Crimp RG 213/U crimp/crimp
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 ? impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
| Contact resistance inner conductor | ≤ 20 m? |
| Contact resistance outer conductor | ≤ 5 m? |
| Insulation resistance | ≥ 5 G? |
| Voltage proof | 1.5 kVeff/50 Hz |
| Impedance | 50 ?/(75 ?) |
| Return loss: Straight style | ≥ 20 dB/3 GHz (50 ? types) |
| Return loss: Angle style | ≥ 17.7 dB / 3 GHz (50 ? types) |
| Working voltage | ≤ 500 Veff/50 Hz |
| Frequency range up to | 4 GHz |
BNC Straight Plug Crimp G1 (RG-58C/U); YR23092 Belden crimp/crimp Standard
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 ? impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

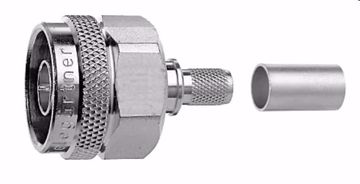

| Article name |
N Plg str cr/cr RG-213/U |
|---|---|
| Cable group; cable |
RG-213/U RG-213/U |
| Ohne Kabelgruppe |
RG-213/U |
| Remarks |
crimp/crimp |
| Dimensions |
a=36.5, b=14.5 |
| Assembly |
B3412 |

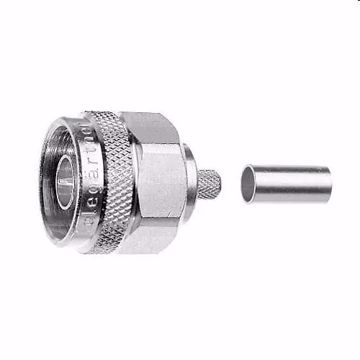

| Article name |
N Plg str cr/cr G1 |
|---|---|
| Cable group; cable |
G1 (RG-58C/U) RG-58C/U |
| Remarks |
crimp/crimp |
| Dimensions |
a=32.5, b=13 |
| Assembly |
B3305 |
