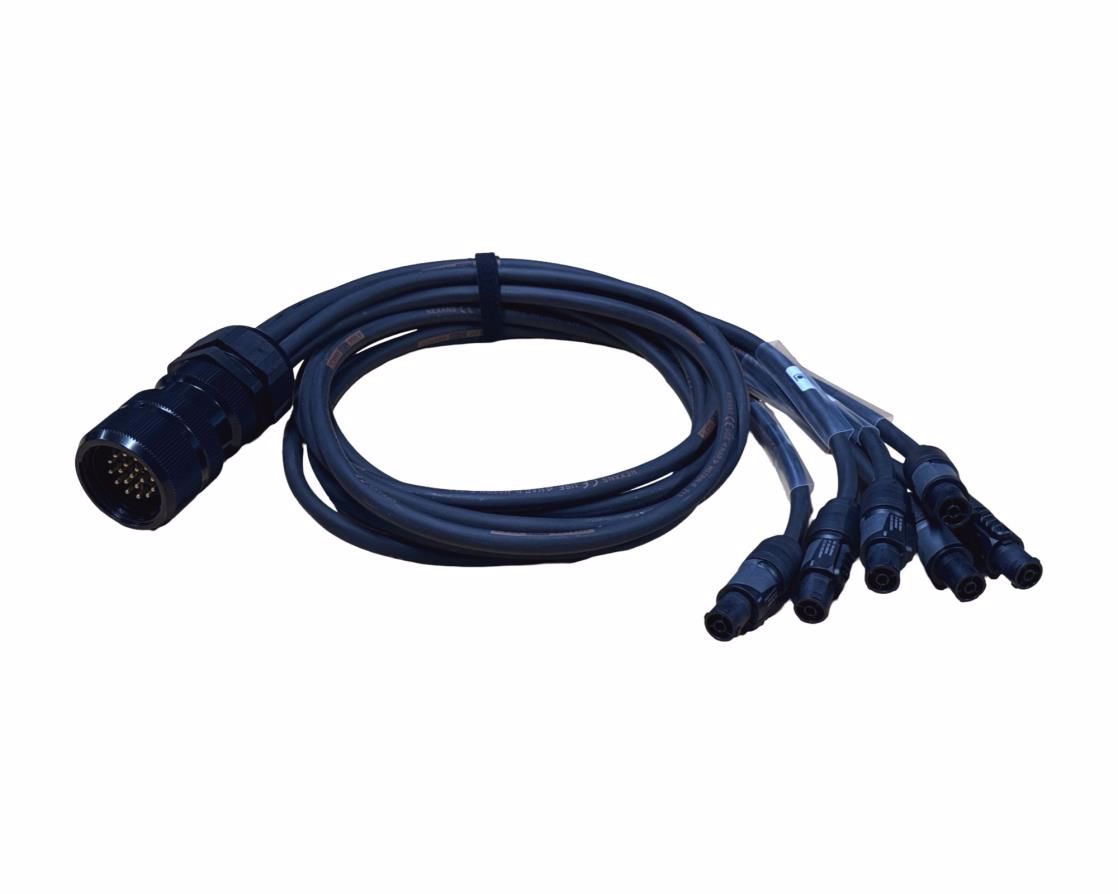

AXE-419-BREAK-OUT-TRUE1

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.

The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

Technical data - Network

Core: 2

Conductor: Nr.4 x Twisted Pairs x 0,25 mm² / 23 AWG (1 x 0,57 mm) Oxygen free Copper

Drain Wire: - (1 x 0,40 mm) Tinned Oxygen free Copper (OFC)

Insulation Wires: Ø 1,25 mm TIA/EIA 568 A-B Skin FPE

Sheath: Ø 8,0 mm Matte Black PVC

Shield: Alu-Polyester Foil ,100% Coverage

DC Loop R Cond : 145 Ω/Km

DCR Shield: N.D.

Capacitance C/C: 45 nF/Km

Impedance (Z0): 100 ?

NPV: 76%

Standard: ISO/IEC 11801

Matching Plug: RJ45(cat6)

Technical data - Energy

Conductor: Nr.3 x 2,5 mm² / 14 AWG (Class 5 - Stranded Cable) Copper

Insulation Wires: Ø 3,57 mm Y/G, Blue, Brown PVC

Sheath: Ø 11,3 mm Matte Black PVC

DC Loop R Cond : IEC_60344

Standard: IEC_60228 - Class 5

NEW: Locking cable connector for big power cords with outer diameters from 10–16 mm  (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 and SJOWW 12/3 . Certified to EN/UL 60320-1.

Locking cable connector, power outlet, screw terminal, IP65, 16A (USA: 20A)

The powerCON TRUE1 TOP is a lockable single phase connector with breaking capacity (CBC) for outdoor applications.
