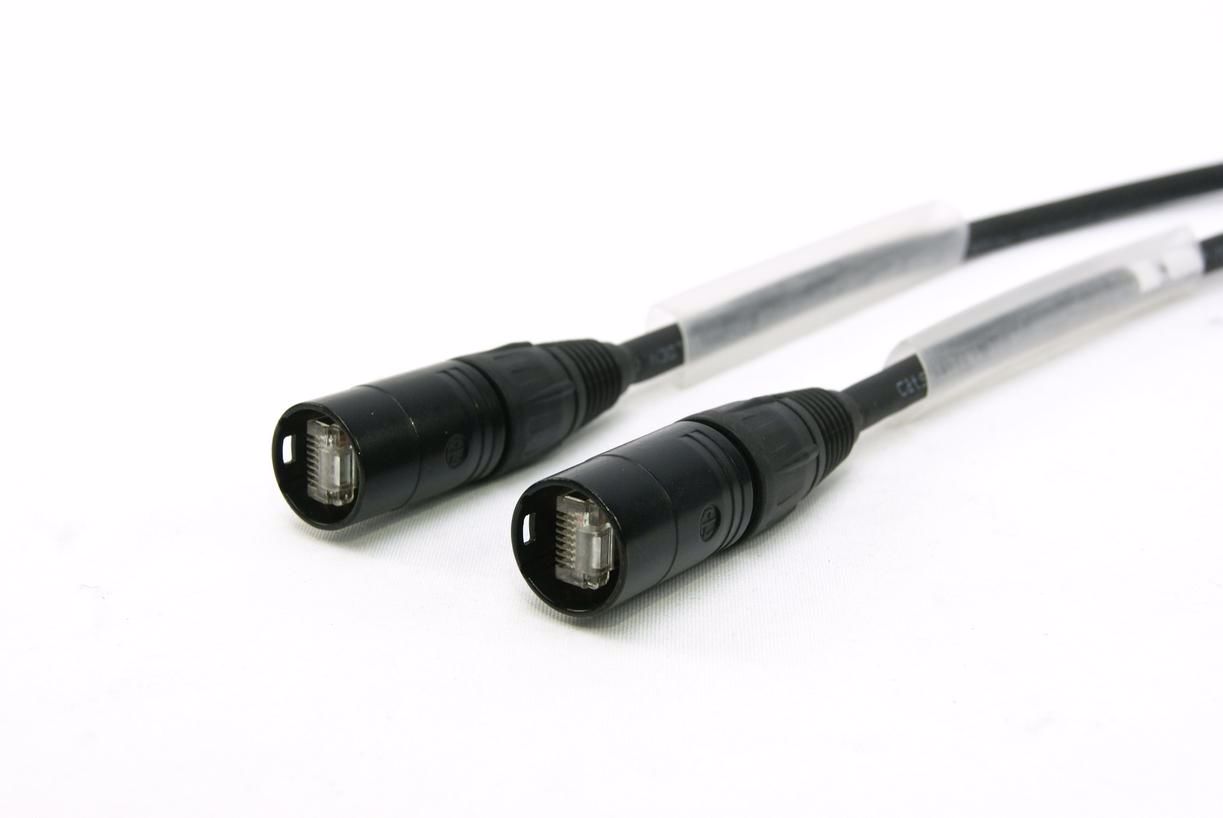

AXE-CAT5/NEU-BLK/1305A

CAT5 /Neutrik black connector / Belden 1305A/ 0,5m

Cable : Belden 1305A Connector : Neutrik Ethercon Accesories : Transparent Heat Shrink x 2
Manufacturer: Axept
Availability: Out of stock (Short delivery)
*
Customers who bought this item also bought

TIT-3G2.5

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

TIT-3G1.5

Titanex H-07RN-F 3G1,5mm²/m - Outside diameter: 11,9mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

SOM-520-0052

DMX Binary 234 AES/EBU MKII; 2 x 0,34 mm²; PVC Ø 6,20 mm; blue

Technical Data: - Properties: OFC oxygen free copper - Properties: Analog - Properties: Digital 110 Ω AES / EBU - Application area: Installation - Application area: Studio / Broadcast - Application area: Mobile outdoor / indoor - Application area: Stage / live - Application area: ELA 100 V - Application: DMX - Colour: blue - Colour detailed: blue - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,2 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper spiral shielding + aluminum steamed fleece - Copper strands (AES/EBU, DMX): 19 - Copper strand Ø (AES/EBU, DMX): 0,15 mm - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 1,5 mm - Weight per 1 m: 50 g - Fire load per m: 0,17 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 6,2 mm - Height: 6,2 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 28 Ω

SYN-7XD1F315SX

POWER 3x1,5 + 1 DMX PAIR

The SYNTAX® POWER+DIGITAL is a hybrid cable with a jacketed 3 x 1.5 mm² mains power cable combined with one or two DMX twisted pairs (7XD1F315SX or 7XD2F315SX). The digital signal pair is shielded by an aluminium/polyester foil screen and covered with a black PVC jacket. The power line is equipped with its own PVC jacket for added safety in compliance with the I.E.C. regulation. Suitable for parallel controls of light mixing boards via power line and DMX signal via digital cable. Also used for analogic audio cabinets when power is supplied. The external flame-retardant black PVC jacket is very flexible, trampling-proof, impact absorbing and water-proof. Overall diameter 7XD1F315SX: 14 mm, 7XD2F315SX: 14.5 mm. Operating temperature -30° to 70° C.
