AXE-CAT5/NEU/1305A

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

Cable Male 3P, Nickel body, silver contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Declaration of Conformity

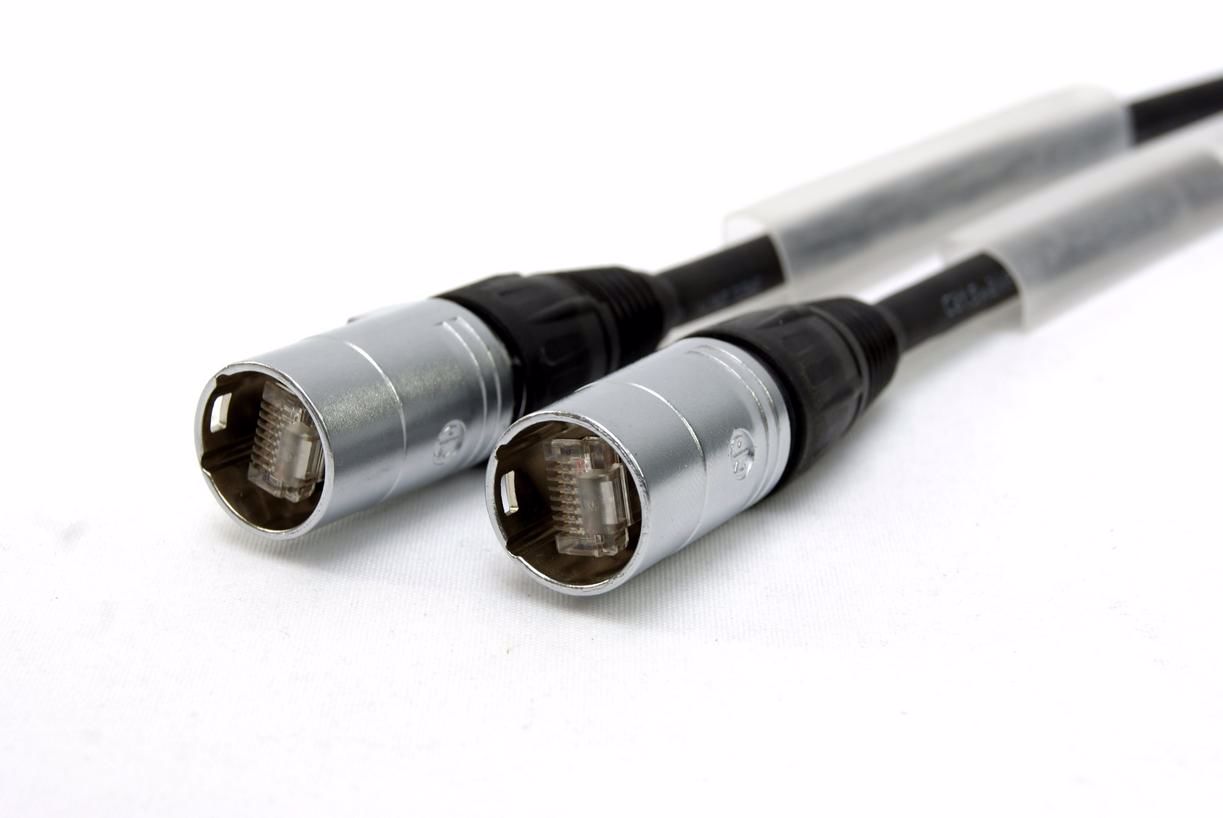

Axept CAT6S/FTP cable black

• S/FTP Cat.6 4x2xAWG 27 LSHZ
• Outer diameter 6,2mm
• Flame retardant acc. to IEC-60332-1
• Length imprinted on strain relief
• Contacts gold-plated

Connector: RJ45 plug shielded and gold plated contacts
Boot: PVC 75A / Length imprinted
Cable: S/FTP Cat.6 4x2xAWG27 LSZH
Outer diamete: r 6.2mm
Bending radius: 5 x outer diameter
Jacket: Flame retardant acc. to IEC 60332-1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568.2-1
Halogen Free ***Gigabit***
general temperature range 0° up to + 60°C
withstand voltage 500V DC

Male cable rubber

Volrubber contactstop 16A, 250V~ 2 polig met bus- en randaarde
(conform NEN 1020 en NBN C 61-112-1).

kleur : zwart
gewicht : 120 g

Eigenschappen:

• slijtvaste, olie- en zuurbestendige massief rubber mantel
• ontwikkeld voor zwaar industrieel gebruik
• zeer drukbestendig, vormvast rubber binnenwerk
• montagevriendelijk door wegklapbare trekontlasting
• vernikkelde contacten
• schroeven met kombi-kop
• reeds geopende contacten
• IP44 stof- en spatwaterdichte kabelinvoer
• geschikt voor neopreenkabel van 3 x 2,5 mm²
