Procable softflex 8x4mm² black - Thin Fexible version
Conductor: Stranded annealed copper wires (50x0.3 mm / Class 5)
Insulation: PVC (Polyvinyl Chloride) - (nom. wall thickness: 0.50 mm)

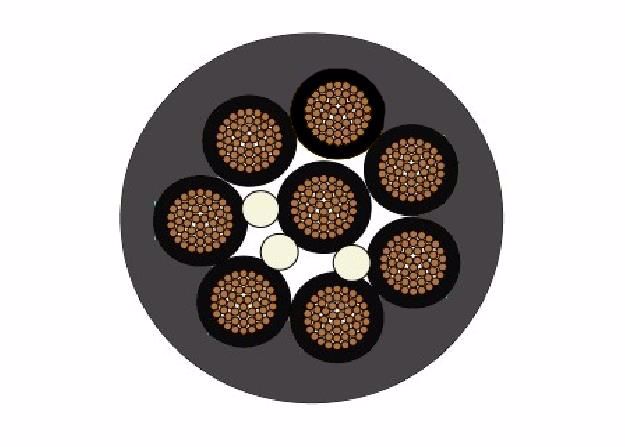

Lay-up: Cores stranded in layers (with a center filler)
Talcum Powder: Yes
Sheath: FLEX NPVC (Nitril PVC-Polyvinyl Chloride) - (with pressure extrusion)
Cable Colour: RAL9005-Black / UV Res. as per ISO 4892-3
Standard: with reference to VDE0245
Technical Properties (20°C)
Operating Voltage: 300/500 V
Test Voltage: 3.5 kV
Min. Insulation Resistance: 20 M ohm x km
Operating Temp. Fixed: -40°C...+70°C
Installation Temperature: -5°C...+70°C
Flame Propagation: IEC 60332-1-2
Min. Bending Radius: 8 x Cable Diameter
