BAL-2189-1

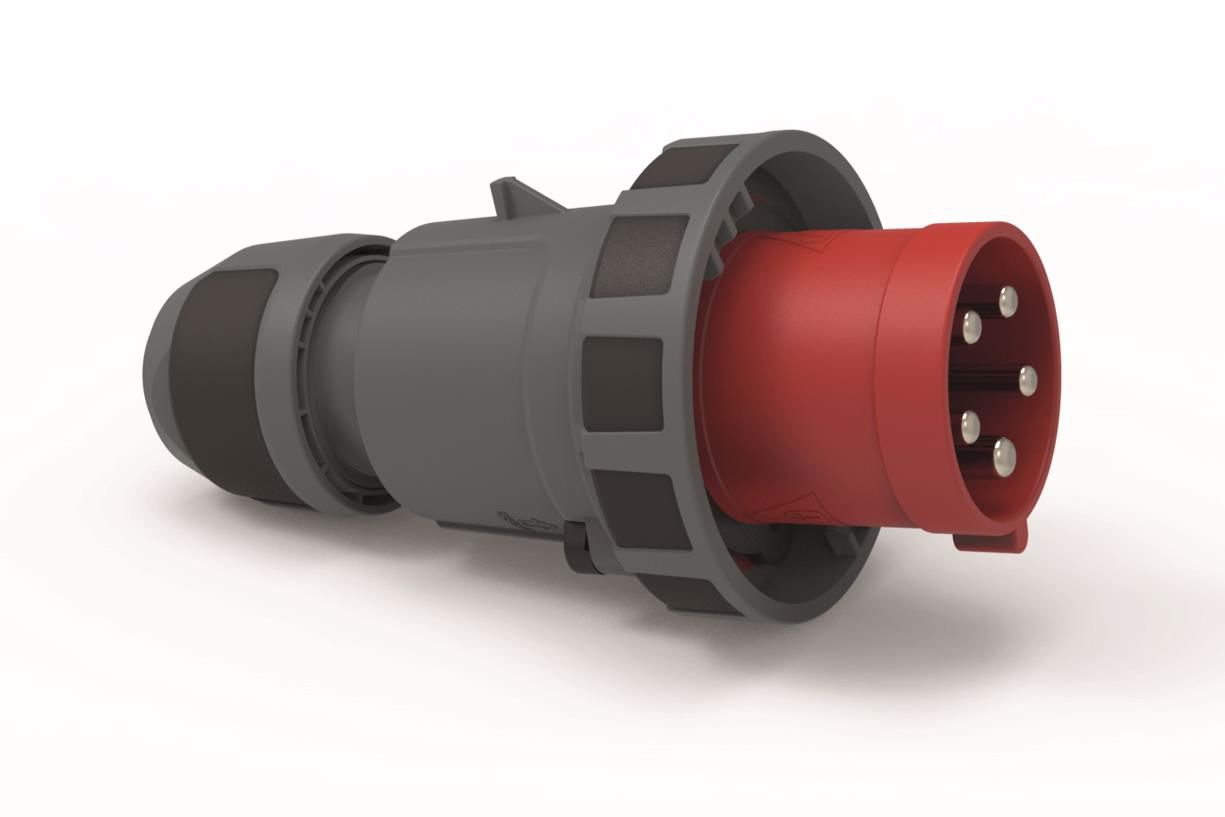

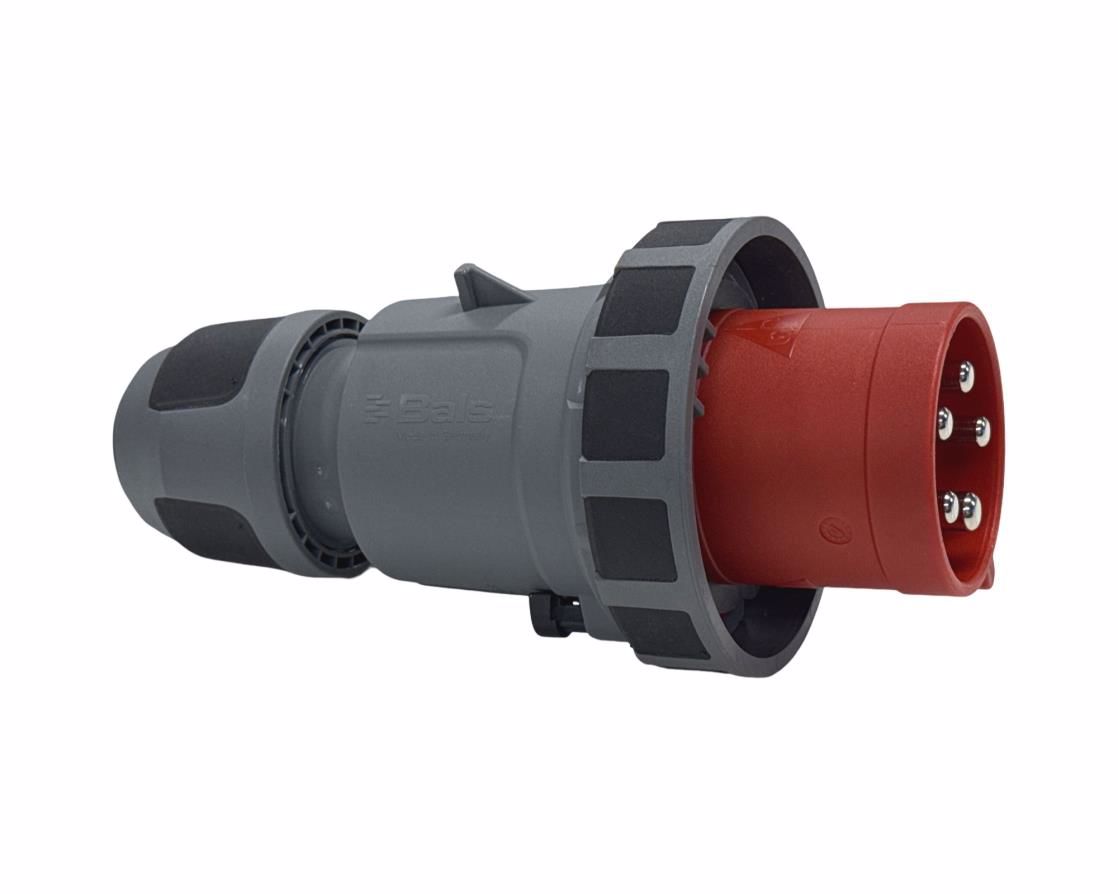

Male cable CEE 63A/380V/5P

Order number 2189 EAN/pcs 4024941021890 Product Group TE plug with MULTI-GRIP cable gland Amperage 63A Poles 5p (3p+N+PE) Earth 'Clock' Position 6 h Voltage 200/346 up to 240/415V Frequency 50 and 60Hz Protection IP67 Color code red RAL 3000 Connection Design Screw Terminal as box terminal Max. conductor 16,0 mm²
Manufacturer: Bals
Availability: Out of stock (On request)
Products specifications
Power 380V
Contacts 5P
Current 63A
Color Red
Products specifications
Power 380V
Contacts 5P
Current 63A
Color Red
Customers who bought this item also bought

NEU-NAC3MPX-TOP

Panel Male POWERCON TRUE1 TOP - 16 A, Outdoor Application

Appliance inlet connector, 1/4" flat tab terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.


BAL-3124

Female cable CEE 63A/380V/5P

Order number 3124 EAN/pcs 4024941031240 Product Group TE connector MULTI-GRIP Cable gland Amperage 63A Poles 5p (3p+N+PE) Earth 'Clock' Position 6 h Voltage 200/346 up to 240/415V Frequency 50 and 60Hz Protection IP67 Color code red RAL 3000 Connection Design Screw Terminal as box terminal with Kontex-contact Max. conductor 16,0 mm²

Declaration of Conformity


NEU-NE8MX6-B

etherCON CAT6A cable connector self-termination, black plating

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded). Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. Features & Benefits •Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2 •PoE+ compliant according to 802.3at Type2 •IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W •Rugged latch lock system million fold proven •Intermateable with the existing etherCON CAT5 range •Unique Neutrik chuck-type strain relief
Related products

TIT-5G16

Titanex H-07RN-F 5G16mm²/m - Outside diameter: 33,3mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.


BAL-3124

Female cable CEE 63A/380V/5P

Order number 3124 EAN/pcs 4024941031240 Product Group TE connector MULTI-GRIP Cable gland Amperage 63A Poles 5p (3p+N+PE) Earth 'Clock' Position 6 h Voltage 200/346 up to 240/415V Frequency 50 and 60Hz Protection IP67 Color code red RAL 3000 Connection Design Screw Terminal as box terminal with Kontex-contact Max. conductor 16,0 mm²

Declaration of Conformity


BAL-2838

Male chassis CEE 63A/380V/5P

Order number 2838 EAN/pcs 4024941028387 Product Group TE flanged appliance inlet straight Amperage 63A Poles 5p (3p+N+PE) Earth 'Clock' Position 6 h Voltage 200/346 up to 240/415V Frequency 50 and 60Hz Protection IP67 Color code red RAL 3000 Connection Design Screw Terminal as box terminal Max. conductor 16,0 mm²

Declaration of Conformity


BAL-13104

Female chassis CEE 63A/380V/5P

Alle Bals stekkers en koppelstekkers zijn impact-bestendig en stabiel bij extreem hoge temperaturen. Ze zijn ook duurzaam en bevatten geen PVC, cadmium of halogeen. Bals onderscheidt zich nog door gebruik te maken van nieuwe ontwikkelingen om de installatie veiliger en gemakkelijk te maken.

Zo maakt de Duitse fabrikant gebruik van Kontex contact. Hierbij is er een gedefinieerd contact dankzij veermechanisme in roestvrij staal.

Verder gebruiken ze ook een schroefloze boxveerklem aansluiting voor het bevestigen van kabels. Dit Quick-Connect systeem zorgt ervoor dat de kabel betrouwbaar, permanent en met een constante klemdruk vast zit. Het is onderhoudsvrij, tril- en schokbestendig. Daarenboven kunnen meerdere kabeldiameters probleemloos worden aangesloten en bespaart dit systeem tot 75% installatietijd.

Tenslotte is Bals ook fier op de door hun uitgevonden Multi-Grip techniek. Dit is een uniek en optimaal kabelsparend trekontlastingssysteem voorzien van 18 flexibele lamellen met onverliesbare gummidichting. Overigens kunnen verschillende kabeldiameters worden bevestigd.


Declaration of Conformity
