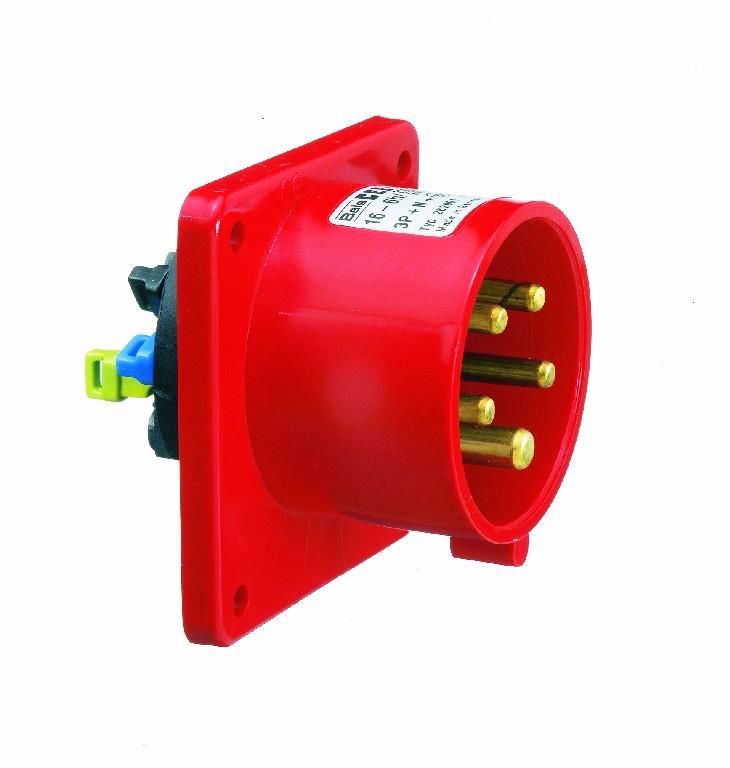

BAL-282002

Male chassis CEE 32A/380V/5P

Order number 282002 EAN/pcs 4024941059015 Product Group flanged appliance inlet QUICK-CONNECT, straight Amperage 32A Poles 5p (3p+N+PE) Earth 'Clock' Position 6 h Voltage 200/346 up to 240/415V Frequency 50 and 60Hz Protection IP44 Color code red RAL 3000 Connection Design screwless spring-clamp technology as cage clamp Max. conductor 6,0 mm²

Declaration of Conformity

Manufacturer: Bals
Availability: In stock
Products specifications
Power 380V
Current 32A
Contacts 5P
Color Red
Products specifications
Power 380V
Current 32A
Contacts 5P
Color Red
