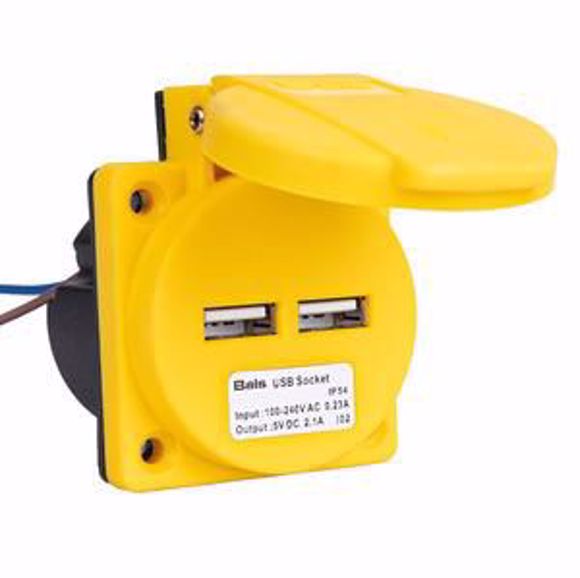

BAL-700

Dual USB A chassis - 2,1A


The industrial version for your distributor system



Mobile devices such as mobile phones, PDAs, MP3 players, portable navigation units and headsets shape everyday life. These devices are generally charged at a USB socket. We have now developed a matching industrial variant which is made of highquality housing material, has protection class IP54 and can charge two devices simultaneously. The hinged lid provides the USB sockets with optimum protection against dust, dirt and moisture.

BALS-Prd.-Nr 700
EAN 4024941926836
product category (PG) USB charging panel mounting socket outlet
current (A) 2.1A
number of poles (P99) 2p
Voltage 5V
frequency (HZ) direct current (DC)
protection degree (SA) IP54
colour code 1 (KF1) yellow RAL 1012
Colour of appliance Hinged lid yellow
Enclosure yellow
connection design (AT) connecting cable 2x 0,8 x 650
Height 61.5mm
Width 50mm
Depth 48.9mm
Flange size vertical 50mm
Flange size horizontal 50mm
Drill hole distance vertical 38mm
Drill hole distance horizontal 38mm
material of enclosure (GM) Polyamide
contact 2x USB type A
The connection is rear
integrated fuse 250V / 3.15A
Input: 100 - 240V AC 0.23A
hinged lid positioning at 90 ° for easy insertion and removal
integrated stain relief for connecting cable
We recommend the installation of a pre-fuse 1A e.g. G-fuse type 9631 with fuse terminal type 581450

Declaration of Conformity

Manufacturer: Bals
Availability: In stock
