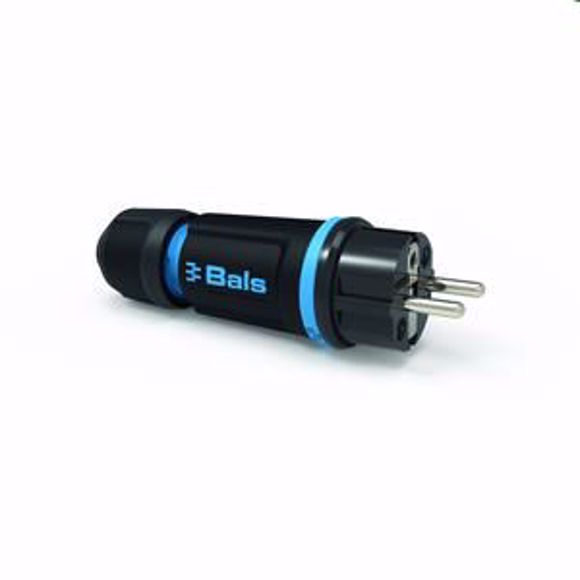

BAL-7370-1

Male cable SCHUKO 16A/230V BLUE

Order number 7370
EAN/pcs 4024941852388
Product Group Domestic plug with MULTI-GRIP cable gland
Amperage 16A
Poles 3p (2P+PE)
Voltage 250V
Frequency alternating current (AC)
Protection IP44
Color code blue RAL 5015
Connection Design Screw Terminal
Max. conductor 4,0 mm²
Belgian/French standaard ! PEN EARTH !!

Declaration of Conformity

Manufacturer: Bals
Availability: In stock
Products specifications
Power 230V
Current 16A
Contacts 3P
Color Blue
Products specifications
Power 230V
Current 16A
Contacts 3P
Color Blue
Customers who bought this item also bought

NEU-NAC3F-TRUE1-S-D

Cable Female POWERCON TRUE1 TOP - 16 A Black, Outdoor Application, 6-12mm (Disassambled)

Locking female cable connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

NEU-NAC3M-TRUE1-S

Cable Male POWERCON TRUE1 TOP - 16 A Black, Outdoor Application, 6-12mm

Locking female cable connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

BAL-7488

Female cable SCHUKO 16A/230V BLACK (Special: DE/NL standard) + cover - No child protect clips

Order number 7488
EAN/pcs 4024941854030
Product Group Domestic connector with MULTI-GRIP cable gland
Amperage 16A
Poles 3p (2P+PE)
Voltage 250V
Frequency alternating current (AC)
Protection IP54
Color code black RAL 9005
Connection Design head-Screw Terminal
Max. conductor 4,0 mm²
Further Information
Additional technical information With child protection (Shutter)
MULTI-GRIP cable gland with gasket and integrated strain relief
With self-closing hinged lid
Material
Material of Enclosure Polyamide
Contact / Contact Carrier contact carrier made of Polyamide, contacts are brass nickel plated
Weight/pcs 0.093 kg
Packaging unit 20 pcs

Declaration of Conformity
