BAL-748809

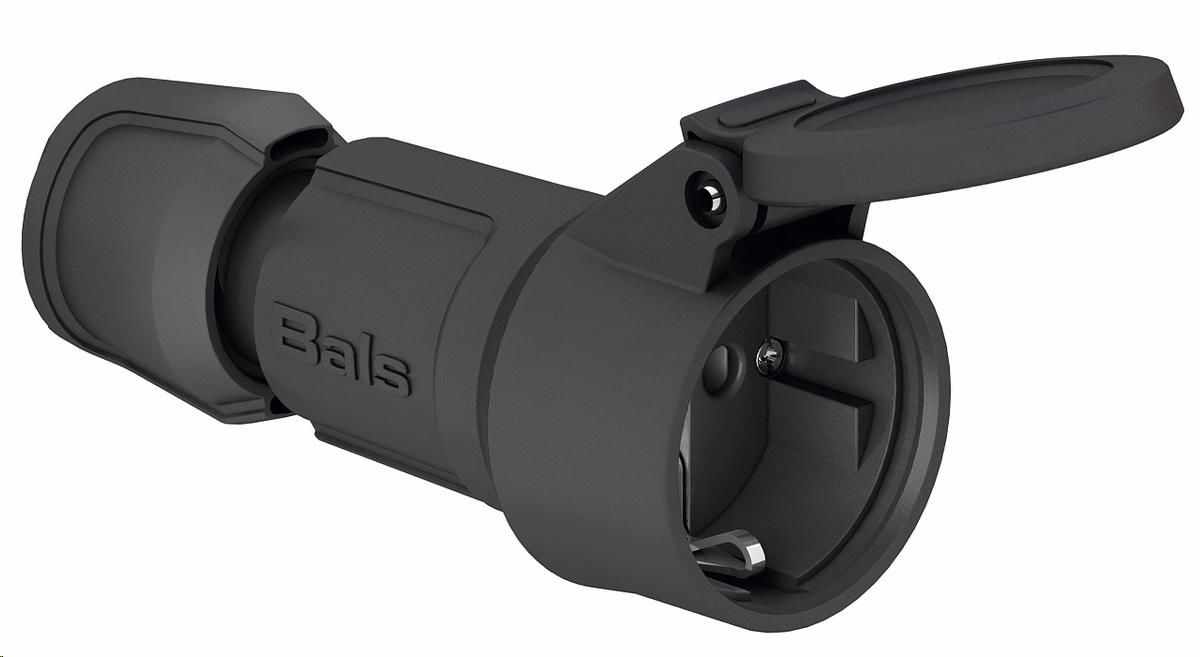

Female cable SCHUKO 16A/230V BLACK (Special: DE/NL standard) + cover

Order number 748809
EAN/pcs 4024941854030
Product Group Domestic connector with MULTI-GRIP cable gland
Amperage 16A
Poles 3p (2P+PE)
Voltage 250V
Frequency alternating current (AC)
Protection IP54
Color code black RAL 9005
Connection Design head-Screw Terminal
Max. conductor 4,0 mm²
Further Information
Additional technical information With child protection (Shutter)
MULTI-GRIP cable gland with gasket and integrated strain relief
With self-closing hinged lid
Material
Material of Enclosure Polyamide
Contact / Contact Carrier contact carrier made of Polyamide, contacts are brass nickel plated
Weight/pcs 0.093 kg
Packaging unit 20 pcs

Declaration of Conformity

Manufacturer: Bals
Availability: In stock
Products specifications
Power 230V
Current 16A
Contacts 3P
Color Black
Products specifications
Power 230V
Current 16A
Contacts 3P
Color Black
