BEL-4855R

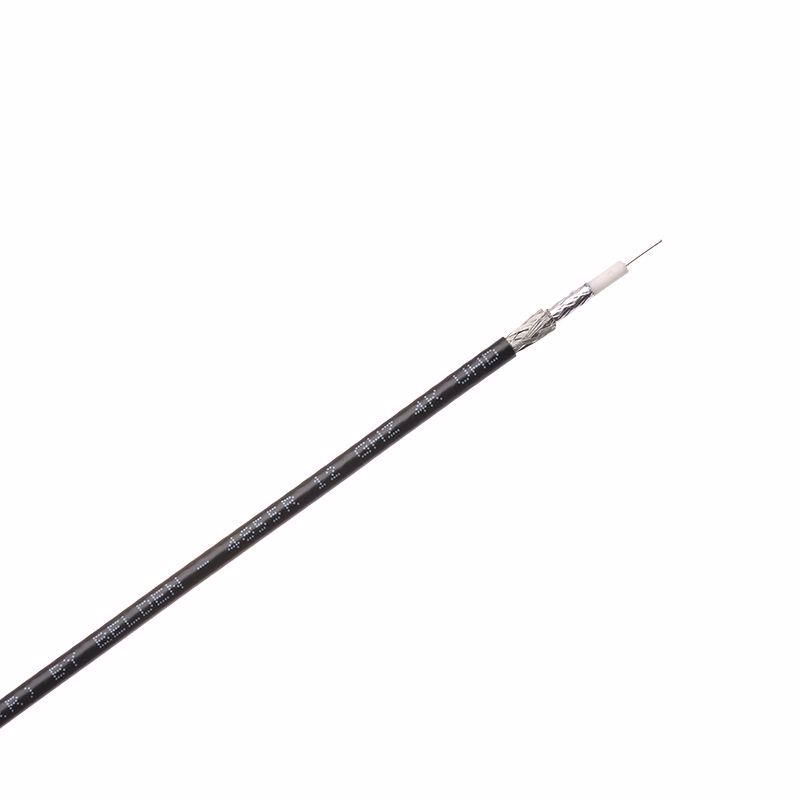

Coax cable 12G-SDI - BLACK - RG-59 Mini

- 12 GHz Coax, 4K UHD Precision Video Cable, RG-59 Mini
- 75 Ohm
- 23 AWG solid .023" silver plated copper conductor
- Gas-injected foam HDPE insulation
- Duofoil® bonded to the core + tinned copper braid shield (95% coverage)
- PVC jacket

Manufacturer: Belden
Availability: In stock
Products specifications
Color Black
Material PVC
Products specifications
Color Black
Material PVC
