BIM-5003/13silver

SC-Monolith 1; power: 3 x 1,50 mm²; DMX: 2 x 0,25 mm²; PVC Ø 12,40 mm - Power OD: 6,2mm; black

Technical Data: - Name: SC-Monolith 1 - Properties: Analog - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Application area: Mobile outdoor / indoor - Application area: Installation - Application area: Stage / live - Application area: Studio / Broadcast - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 12,4 mm - Jacket Ø (power): 7 mm - Jacket Ø (AES/EBU, DMX): 4,3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 1,5 mm² - Inner conductor (AES/EBU, DMX): 0,25 mm² - Inner conductor Ø (power): 1,38 mm - Inner conductor Ø (AES/EBU, DMX): 0,56 mm - AWG (power): 15 - AWG (AES/EBU, DMX): 23 - Shielding (AES/EBU, DMX): Braided mesh, tin-plated - Copper strands (power): 28 - Copper strands (AES/EBU, DMX): 7 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,20 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 2,3 mm - Weight per 1 m: 200 g - UV-resistant: yes - Fire load per m: 0,64 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 12,4 mm - Height: 12,4 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω

SC-Monolith 2; power: 3 x 1,50 mm²; DMX: 2 x 0,14 mm²; PVC Ø 12,30 mm - Power OD: 6,2mm; black

Technical Data: - Name: SC-Monolith 2 - Properties: Analog - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Application area: Stage / live - Application area: Installation - Application area: Studio / Broadcast - Application area: Mobile outdoor / indoor - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 12,3 mm - Jacket Ø (power): 6,2 mm - Jacket Ø (AES/EBU, DMX): 3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 2 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 1,5 mm² - Inner conductor (AES/EBU, DMX): 0,14 mm² - Inner conductor Ø (power): 1,38 mm - Inner conductor Ø (AES/EBU, DMX): 0,42 mm - AWG (power): 15 - AWG (AES/EBU, DMX): 25 - Shielding (AES/EBU, DMX): Copper spiral, tin-plated - Copper strands (power): 28 - Copper strands (AES/EBU, DMX): 36 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,07 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 2,3 mm - Conductor insulation Ø (AES/EBU, DMX): 1,15 mm - Weight per 1 m: 200 g - UV-resistant: yes - Fire load per m: 0,86 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 12,3 mm - Height: 12,3 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω

Cable Male 3P, Nickel body, silver contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Declaration of Conformity

Alu housing Length 50mm / Width 50mm / Height 31mm/Silver empty box

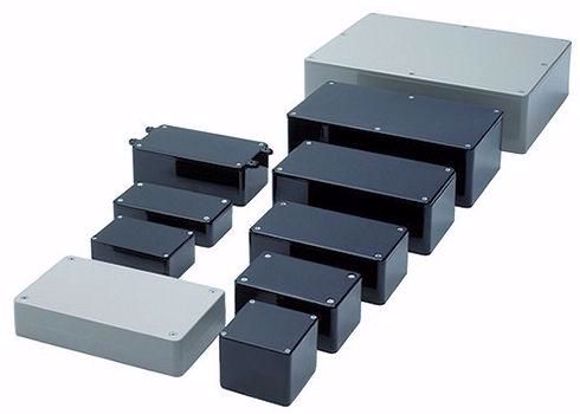

Bimboxes - BIM 5000 Series Multi Purpose Diecast Boxes
The BIM range of aluminium diecast boxes available in six sizes, each
having slots for holding 1.5mm printed circuit boards.
The boxes have close fitting flanged lids held by M3 screws running into
tapped holes, and thus fully screened enclosures which withstand
temperatures as high as 260ºC (500ºF).
The boxes can be easily drilled or punched and are ideal for both prototype
and production applications.
