8 channel hoist controller with master/slave
- Standalone chain hoist motor controller.
- Controls up to 8 motors in standalone operation
- Fully compatible with the smaller RICO-V4!
- Several units can be linked in master/slave using the link in/out on the back panel:
- Easy control for a larger number of chain hoists.
- Simultaneous hoist control using the UP/DOWN buttons on the master controller.
- Centralized Emergency stop on the master controller.
- Slave indicator led.
- Manual phase inversion switch for each output.
- Choice of different outputs for maximum flexibility (rental companies!):
- 4x individual CEE16 4pole 16A outputs
- 2x 16PIN multichannel industrial rectangular connector, Harting® compatible
- 2x 19PIN multichannel industrial round connector, Socapex® compatible
- 1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use.

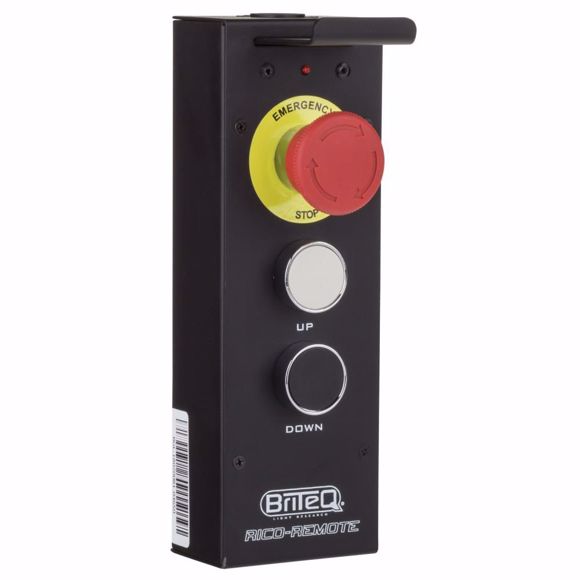

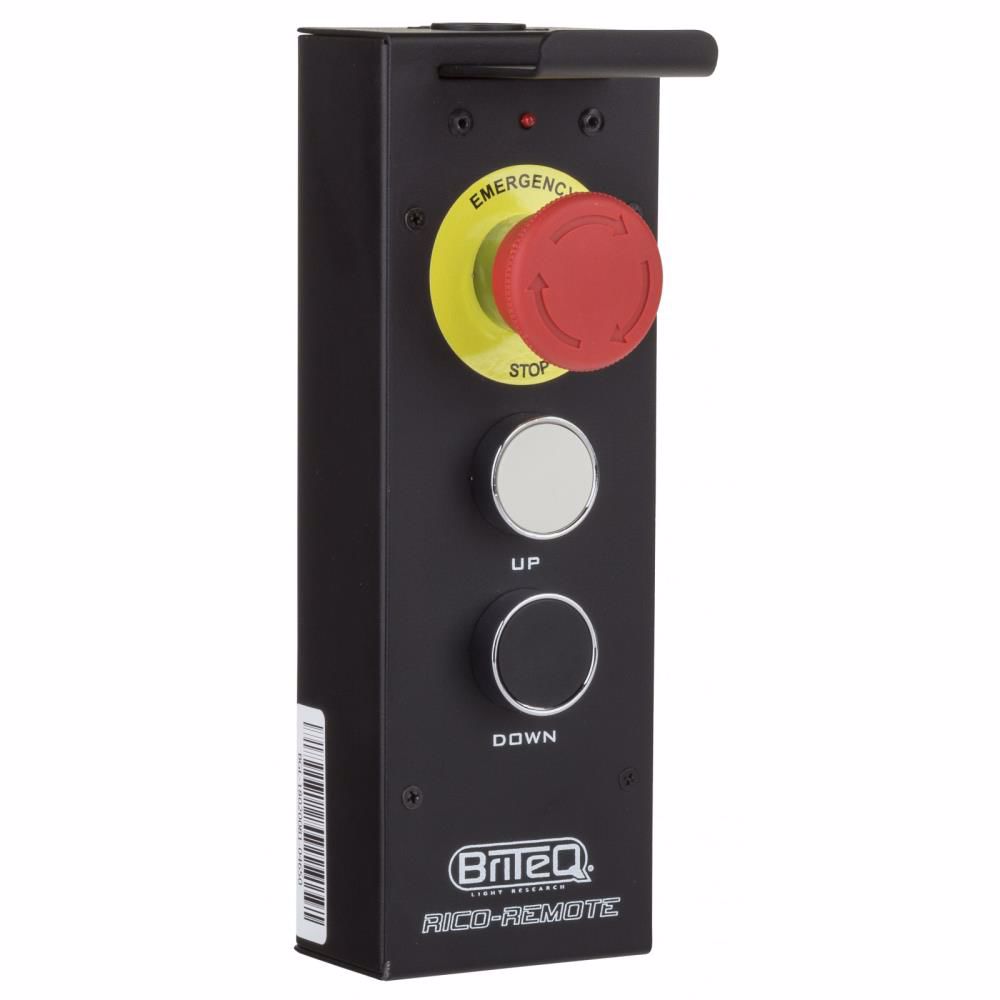

- Remote control input (XLR) with led indicator to connect the [RICO-REMOTE] (optional, order code: 4650).
- Phase indicators to easily check if the 3phases are available.
- 32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected.
- Two C16 (16A - 1P+N) 2-POLE automatic circuit breakers for control circuit + auxiliary output.
- Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug
- CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass
- Extremely robust 19"/4U metal housing.
-
Designed and build in Europe to the highest international safety standards!
