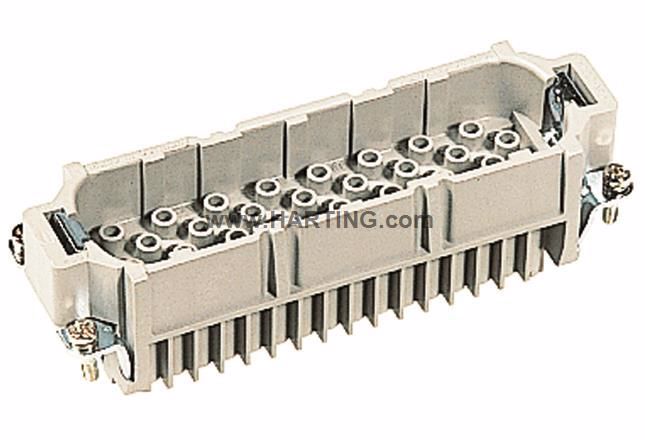

HAR-09210643001

Insert Male 64D (without contacts)

Artikelnummer 09 21 064 3001 Beschrijving Han 64D MALE INSERT CRIMP Type sheet PDFPDF Identification Category Inserts Series Han D® Termination method Crimp termination Version Gender Male Size 24 B Number of contacts 64 PE contact Yes Details Please order crimp contacts separately. Technical characteristics Conductor cross-section 0.14 ... 2.5 mm² Electrical data acc. to IEC 61984 10 A 250 V 4 kV 3 Rated current 10 A Rated voltage 250 V Rated impulse voltage 4 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Limiting temperature -40 ... +125 °C Mating cycles ? 500 Flammability acc. to UL 94 V-0 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 68.1 g RoHS compliant Specifications and approvals Specifications IEC 61984 EN 60664-1 EN 175301-801 Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Plastic
Color Grey
Contacts 64P
Products specifications
Material Plastic
Color Grey
Contacts 64P
