HAR-09300065425

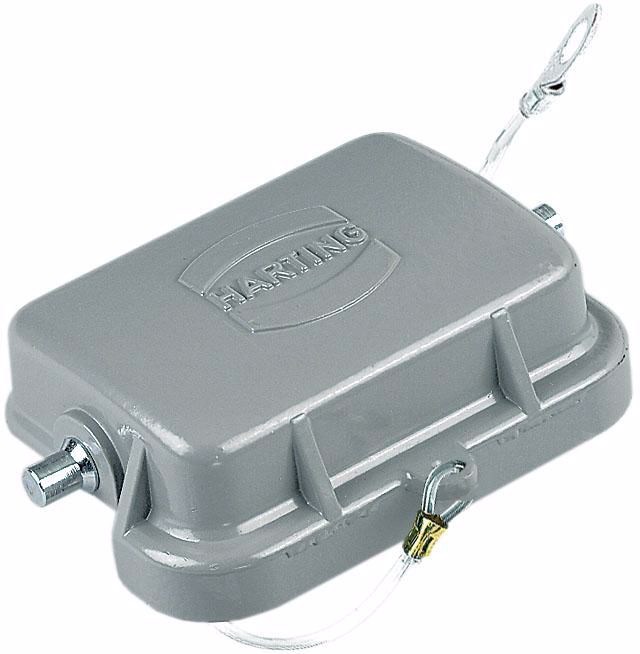

Cover 6E/24DD - Grey

Artikelnummer 09 30 006 5425 Beschrijving Han E HOUSING COVER SPECIAL Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Protection cover for bulkhead and surface mounted housings Description of hood/housing With fixing cord Metal Type High construction Low construction Locking type Single locking lever Version Size 6 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Net weight 44.2 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: Out of stock (On request)
Products specifications
Material Steel
Contacts 6P
Color Grey
Products specifications
Material Steel
Contacts 6P
Color Grey
