HAR-09300160301

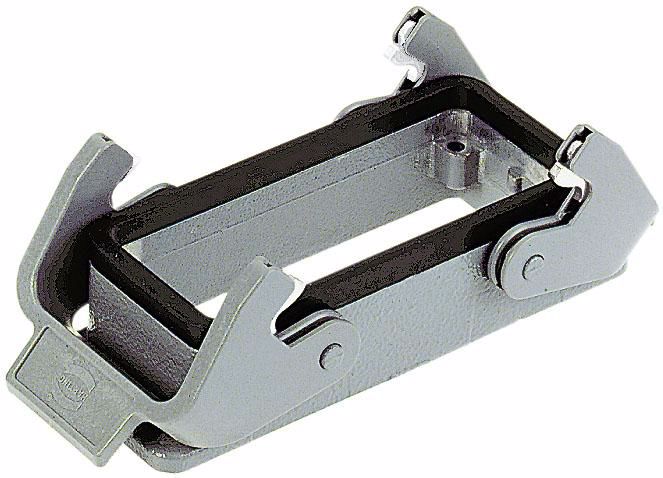

Panel Open 16E/72DD - Grey

Artikelnummer 09 30 016 0301 Beschrijving Han B Base Panel 2 Levers Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Bulkhead mounted housings Type Low construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 121.8 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Steel
Color Grey
Contacts 16P
Products specifications
Material Steel
Color Grey
Contacts 16P
Customers who bought this item also bought

HAR-09150006104

Contact Silver Male 0,14-0,37mm² HanD/DD

Artikelnummer 09 15 000 6104 Beschrijving Han D MALE CRIMP CONT.0.14-0.3 Type sheet PDFPDF Identification Category Contacts Series Han D® Type of contact Crimp contact Version Gender Male Technical characteristics Conductor cross-section 0.14 ... 0.37 mm² Conductor cross-section AWG 26 ... AWG 22 Operating current ? 10 A Contact resistance ? 3 m? Stripping length 8 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 0.71 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1

Declaration of Conformity

AXE-PROCABLE18x1.5

Procable softflex 18x1,5mm² black

Type: MULTIFLEX-SOFT 18 x 1,5 mm2, black
Nominal voltage: 300/500 V
Conductor: finely wired acc. to VDE 0295
Copper construction: 30 x 0,25 mm
Core insulation: PVC-mixture – shorehardness 90+/- 3
Laying of cores: Centre: PVC filler, 1. lay = 6 cores,
2. lay = 12 cores
Core colours: 17 x black with white numbers+1 green-yellow
Jacket: Soft PVC-mixture, black (RAL 9005)
Shorehardness 65 +/- 3
Presure extrusion, with talc, printing: optional
Outside diameter: approx. 16,0 ± 0,40 mm
Test voltage > 3 kV – at 50 Hz eff. for 1 minute
Insulation resistance: min. 20 MOhm x km at 20°C
Conductor resistance: max. 13,3 Ohm/km at 20°C
Operating voltage: max. 500 V
Temperature rating: static: -30 up to +80 °C
operating: - 5 up to +70 °C
This cable is flame retardant acc. DIN VDE 0482 part 265-2-1



HAR-09150006204

Contact Silver Female 0,14-0,37mm² HanD/DD

Artikelnummer 09 15 000 6204 Beschrijving Han D FEMALE CRIMP CONT..14-.3 Type sheet PDFPDF Identification Category Contacts Series Han D® Type of contact Crimp contact Version Gender Female Technical characteristics Conductor cross-section 0.14 ... 0.37 mm² Conductor cross-section AWG 26 ... AWG 22 Operating current ? 10 A Contact resistance ? 3 m? Stripping length 8 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 0.73 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1

Declaration of Conformity

HAR-09330162601

Insert Male 16E with screw contacts

Artikelnummer 09 33 016 2601 Beschrijving Han E MALE INSERT SCREW Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Screw termination Version Gender Male Size 16 B With wire protection Yes Number of contacts 16 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Contact resistance ? 1 m? Limiting temperature -40 ... +125 °C Tightening torque 0.5 Nm Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 85.8 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity
