HAR-09300165422

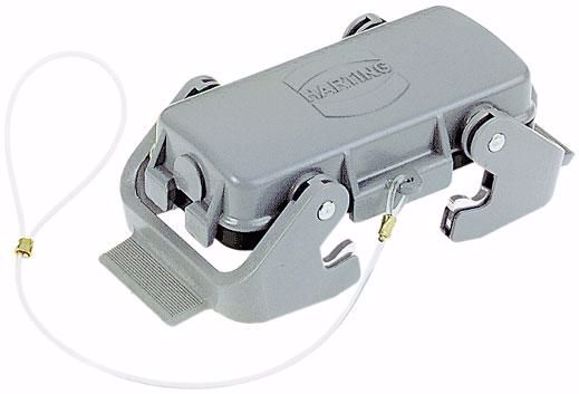

Cover 16E/72DD - Grey

Artikelnummer 09 30 016 5422 Beschrijving Han D/E HOOD COVER SPECIAL Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Protection cover for hoods Description of hood/housing With fixing cord Metal Type High construction Low construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 106.7 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Steel
Color Grey
Contacts 16P
Products specifications
Material Steel
Color Grey
Contacts 16P
