HAR-09330102601

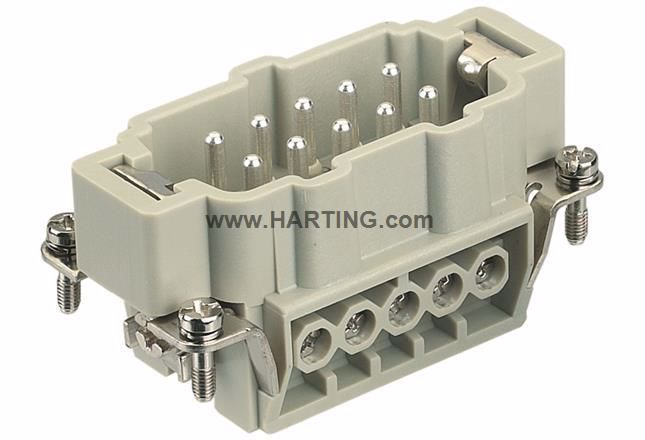

Insert Male 10E with screw contacts

Artikelnummer 09 33 010 2601 Beschrijving Han E MALE INSERT SCREW Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Screw termination Version Gender Male Size 10 B With wire protection Yes Number of contacts 10 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Contact resistance ? 1 m? Limiting temperature -40 ... +125 °C Tightening torque 0.5 Nm Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 64 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Plastic
Power 230V
Current 16A
Contacts 10P
Color Grey
Products specifications
Material Plastic
Power 230V
Current 16A
Contacts 10P
Color Grey
