HAR-19300160272

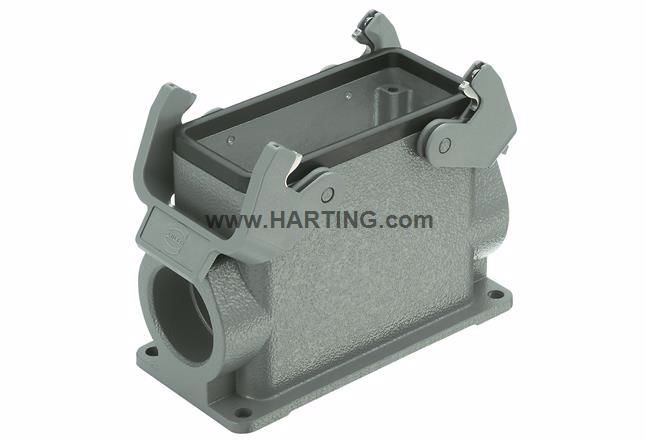

Panel Closed 16E/72DD - 2xM32 - Grey

Artikelnummer 19 30 016 0272 Beschrijving Han D/E HOUSING 2x ENTRY M32 Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Surface mounted housing Type High construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Version Side entry Cable gland 2x M32 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 404.67 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Steel
Color Grey
Contacts 16P
Products specifications
Material Steel
Color Grey
Contacts 16P
