HAR-19300160273

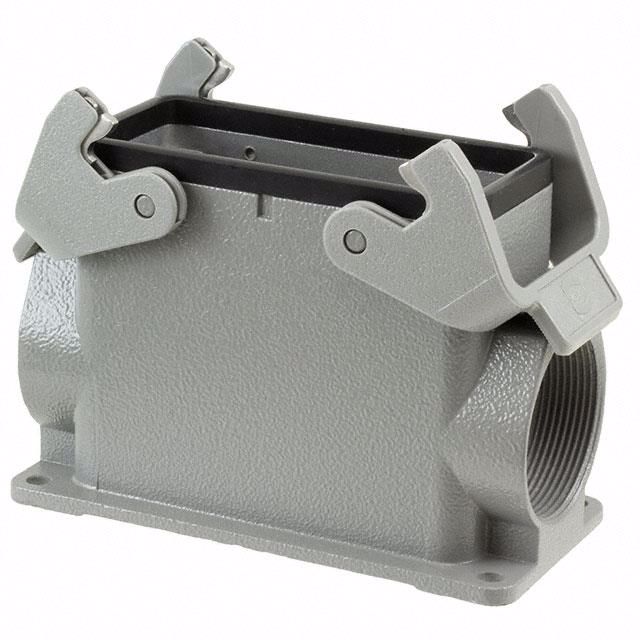

Panel Closed 16E/72DD - High -2xM40 - Grey

Artikelnummer 19 30 016 0273 Beschrijving Han D/E HOUSING 2x ENTRY M40 Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Surface mounted housing Type High construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Version Side entry Cable gland 2x M40 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 354.6 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Steel
Color Grey
Contacts 16P
Products specifications
Material Steel
Color Grey
Contacts 16P
Customers who bought this item also bought

TIT-5G6

Titanex H-07RN-F 5G6mm²/m - Outside diameter: 22,2mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

HAR-19300160528

Hood 16E/72DD Side Entry - High - M40 - Grey

Artikelnummer 19 30 016 0528 Beschrijving Han B Hood Side Entry HC 4 Pegs M40 Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Hoods Type High construction Locking type Double locking lever Version Size 16 B Version Side entry Cable gland 1x M40 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Net weight 206.2 g RoHS compliant Specifications and approvals Approvals UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 GL Yes

Declaration of Conformity

HAR-19307160427

Hood 16E/72DD - Top Entry - High - M32 - Black

Artikelnummer 19 30 716 0427 Beschrijving Han D/E HOOD TOP ENTRY M32 black Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Hoods Description of hood/housing Black Type High construction Locking type Double locking lever Version Size 16 B Version Top entry Cable gland 1x M32 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 9005 (jet black) Net weight 218 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

NEU-NAC3MX-W-TOP-L

Cable Male POWERCON TRUE1 TOP - 16 A Black, Outdoor Application for large cable (Ø 10-16mm)

NEW: Locking cable connector for big power cords with outer diameters from 10–16 mm  (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 and SJOWW 12/3 . Certified to EN/UL 60320-1.

Locking cable connector, power outlet, screw terminal, IP65, 16A (USA: 20A)

The powerCON TRUE1 TOP is a lockable single phase connector with breaking capacity (CBC) for outdoor applications.
