HAR-19307160527

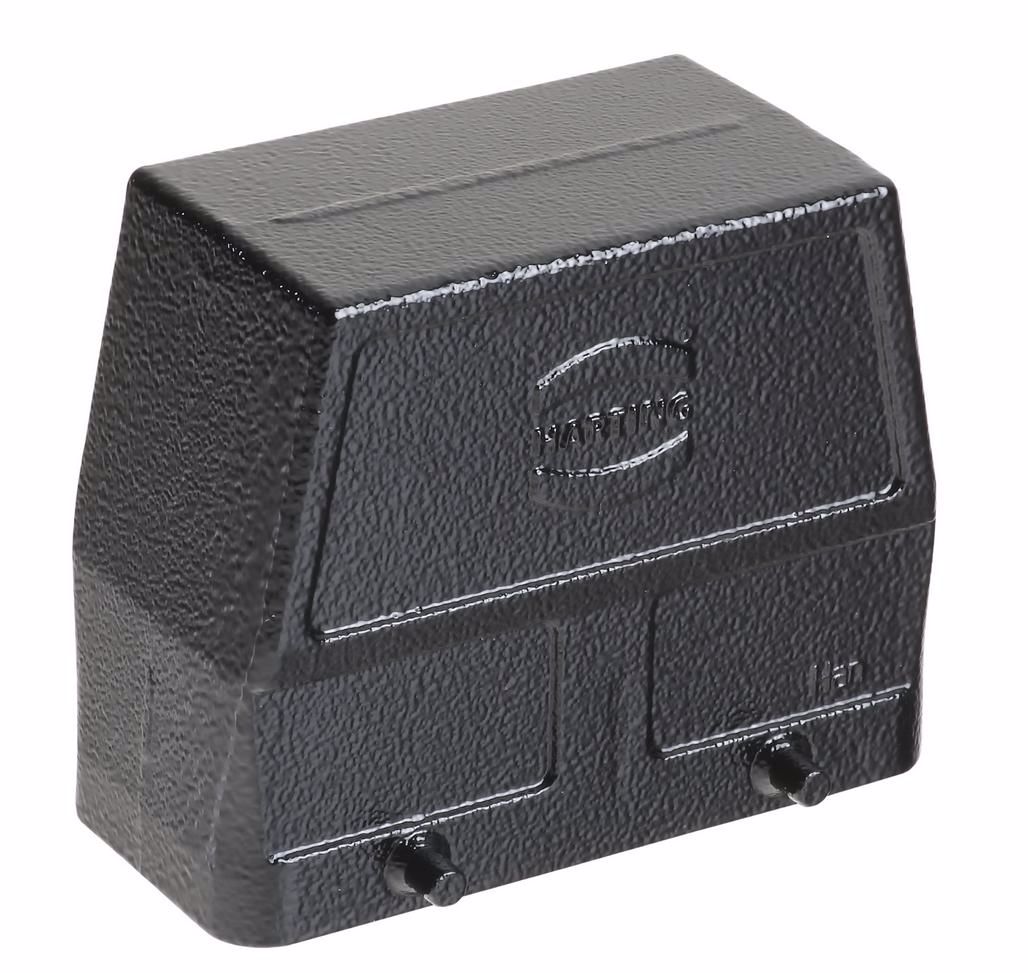

Hood 16E/72DD - Side Entry - High - M32 - Black

Artikelnummer 19 30 716 0527 Beschrijving Han HOOD SIDE ENTRY M32 Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Hoods Description of hood/housing Black Type High construction Locking type Double locking lever Version Size 16 B Version Side entry Cable gland 1x M32 Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 9005 (jet black) Net weight 215.3 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Steel
Color Black
Contacts 16P
Products specifications
Material Steel
Color Black
Contacts 16P
