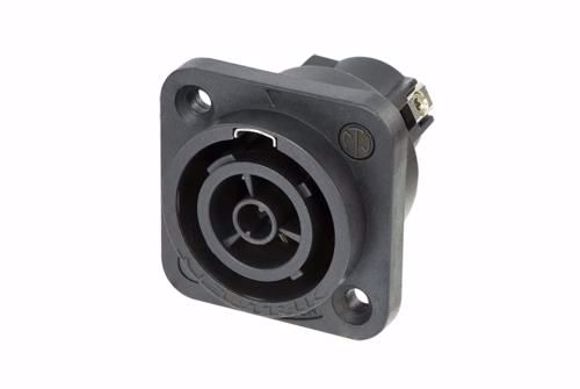

NEU-NAC3FPX-ST-TOP

Panel Female POWERCON TRUE1 TOP - 16 A Black, screw terminals, Outdoor Application

Appliance outlet connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Manufacturer: Neutrik
Availability: Out of stock (Short delivery)
Products specifications
Current 16A
Products specifications
Current 16A
