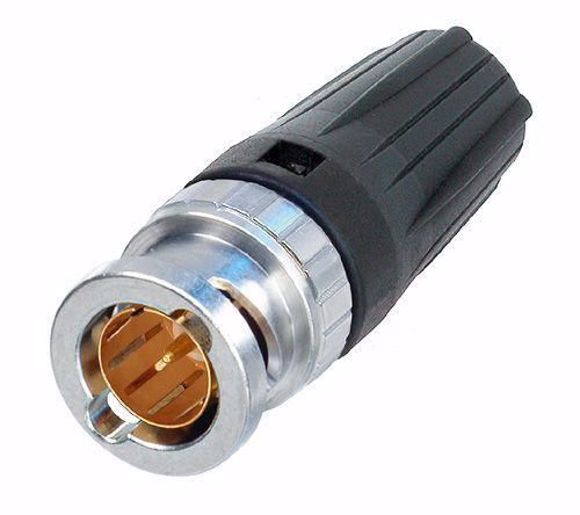

rearTWIST BNC connector
The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
Pin: 1.6 mm (square)
Shield: 5.0 mm (hex)
Features & Benefits
•“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
•Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
•True 75 ? design meets the stringent HDTV / DVD requirements
•Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
•Snug-fit center pin insert provides tactile feedback
•Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
•Excellent cable protection and retention
•Precise Swiss machined brass parts for outstanding durability
•Accessories include color coded boots in 10 standard colors, crimp tool and dies
