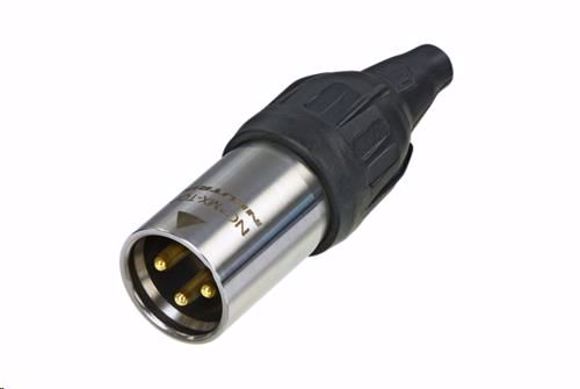

NEU-NC3MX-TOP

Cable Male 3P, Black body, gold contacts, True Outdoor Protection

3 pole male cable connector, TRUE OUTDOOR PROTECTED, gold contacts

The X-TOP series is a "heavy duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable or chassis connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

Manufacturer: Neutrik
Availability: In stock
Products specifications
Color Black (Gold contacts)
Contacts 3P
Products specifications
Color Black (Gold contacts)
Contacts 3P
Customers who bought this item also bought

PRM-NETEB4STB/1.5

Power strip 4channel - 3G1,5 - STRAIGHT

Features

  • comes with 8 cm transparent shrink sleeve (not shrunk) for custom labelling
  • child protection
  • socket type: French (type E)

Specifications

  • number of sockets: 4
  • cable: H05VV-F 3G1.5
  • cable length: 5 m
  • colour: black
  • max. power: 3500 W
  • voltage: 230 V 16 A

NEU-NC3FX-TOP

Cable Female 3P, Black body, gold contacts, True Outdoor Protection

3 pole female cable connector, TRUE OUTDOOR PROTECTED (TOP)

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable or chassis connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

SOM-500-0051-1

SC-Monolith 1; power: 3 x 1,50 mm²; DMX: 2 x 0,25 mm²; PVC Ø 12,40 mm; black

Technical Data: - Name: SC-Monolith 1 - Properties: Analog - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Application area: Mobile outdoor / indoor - Application area: Installation - Application area: Stage / live - Application area: Studio / Broadcast - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 12,4 mm - Jacket Ø (power): 7 mm - Jacket Ø (AES/EBU, DMX): 4,3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 1,5 mm² - Inner conductor (AES/EBU, DMX): 0,25 mm² - Inner conductor Ø (power): 1,38 mm - Inner conductor Ø (AES/EBU, DMX): 0,56 mm - AWG (power): 15 - AWG (AES/EBU, DMX): 23 - Shielding (AES/EBU, DMX): Braided mesh, tin-plated - Copper strands (power): 28 - Copper strands (AES/EBU, DMX): 7 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,20 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 2,3 mm - Weight per 1 m: 200 g - UV-resistant: yes - Fire load per m: 0,64 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 12,4 mm - Height: 12,4 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω

KAC-KKL19.0BK/1.22m

Heat shrink glue 19,0mm Black, 3/1, H5

H-2(3X)
Thin-wall heat shrink tubing / flexible / flame retardant / 3:1


Features:
• Crosslinked Polyolefin
• Shrink ratio: 3:1
• Flame retardant
• General purpose
• High flexibility


Approvals:
• UL224 125 °C VW-1 600 V file E204071
• CSA file no.: 1934614
• Meets: RoHS, Sony-SS-00259


Application:
• Operating temperature: -55 °C to +125 °C
• Minimum shrink temperature: +70 °C
• Minimum full recovery temperature: +100 °C
• Longitudinal change: 0 ± 10% max.
Order information:


• Color: black
• Other colors: red, blue, yellow, green, white, transparent (flame retardant class 2)
