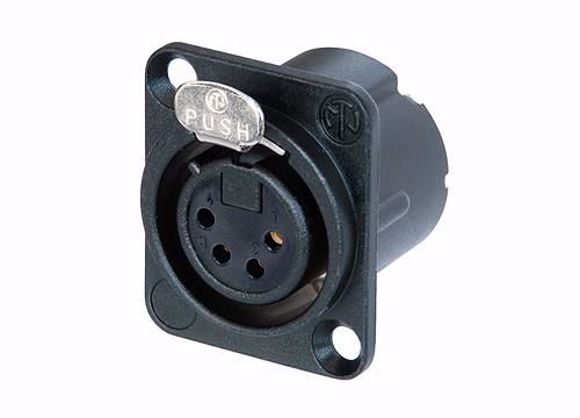

NEU-NC4FD-LX-B

Titanex H-07RN-F 3G6mm²/m - Outside diameter: 18mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

Cable Female 3P, Black body, gold contacts

3 pole female cable connector with black metal housing and gold contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product

Cable Male 3P, Black body, gold contacts

3 pole male cable connector with black metal housing and gold contacts The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product

SC-Monolith 2; power: 3 x 1,50 mm²; DMX: 2 x 0,14 mm²; PVC Ø 12,30 mm - Power OD: 6,2mm; black

Technical Data: - Name: SC-Monolith 2 - Properties: Analog - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Application area: Stage / live - Application area: Installation - Application area: Studio / Broadcast - Application area: Mobile outdoor / indoor - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 12,3 mm - Jacket Ø (power): 6,2 mm - Jacket Ø (AES/EBU, DMX): 3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 2 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 1,5 mm² - Inner conductor (AES/EBU, DMX): 0,14 mm² - Inner conductor Ø (power): 1,38 mm - Inner conductor Ø (AES/EBU, DMX): 0,42 mm - AWG (power): 15 - AWG (AES/EBU, DMX): 25 - Shielding (AES/EBU, DMX): Copper spiral, tin-plated - Copper strands (power): 28 - Copper strands (AES/EBU, DMX): 36 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,07 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 2,3 mm - Conductor insulation Ø (AES/EBU, DMX): 1,15 mm - Weight per 1 m: 200 g - UV-resistant: yes - Fire load per m: 0,86 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 12,3 mm - Height: 12,3 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω
