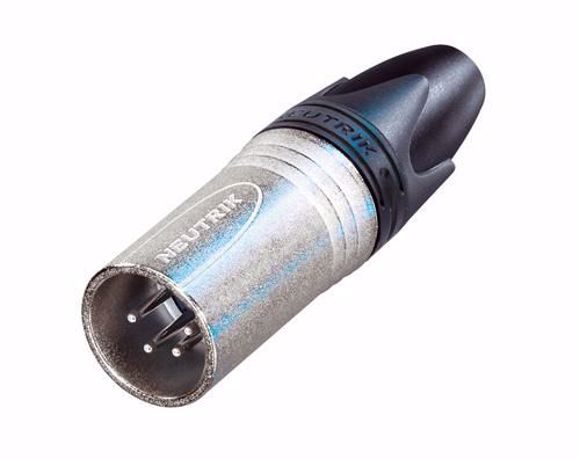

NEU-NC4MXX

DMX Binary 434 DMX512; 4 x 0,34 mm²; PVC Ø 7,00 mm; black

Technical Data: - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Properties: Analog - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application area: Installation - Application area: ELA 100 V - Application: DMX - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 7 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 4 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper-cross mesh, tined + AL / PT foil - Copper strands (AES/EBU, DMX): 7 - Copper strand Ø (AES/EBU, DMX): 0,25 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,7 mm - Weight per 1 m: 65 g - UV-resistant: yes - Fire load per m: 0,22 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 7 mm - Height: 7 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 58 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 100 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 5 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 5 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 15 Ω

Cable Male 5P, Nickel body, silver contacts

5 pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product

Cable Female 4P, Nickel body, silver contacts

4 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits •Unique cage design of female contact for low contact resistance and high integrity •Female contact incorporates a solder barrier to prevent solder running into the contact mating area •Female connector with improved solid metal latch which is larger and easier to handle •Additional ground spring contacts for better shell ground continuity •Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster •Boot with polyurethane gland gives high protection to cable bending stresses •Colored rings and boots available for coding or identification •Sleek and ergonomic design - valuable and handy •Rugged zinc diecast shell, longlasting and dependable •Internal thread on shell is well protected against any damage •Branded with unique hologram - guarantees genuine and authentic Neutrik product

Cable Female 3P, Nickel body, silver contacts

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product
