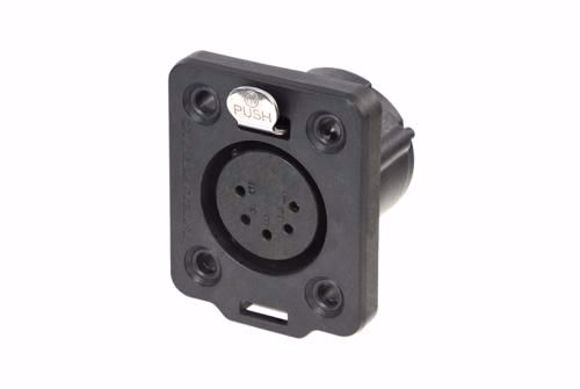

NEU-NC5FDX-TOP

Panel 5 pole Female, Black housing, gold contacts, True Outdoor Protection, D-size

5 pole female cable connector, TRUE OUTDOOR PROTECTED (TOP)

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable or chassis connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

Manufacturer: Neutrik
Availability: In stock
Products specifications
Color Black (Gold contacts)
Contacts 5P
Products specifications
Color Black (Gold contacts)
Contacts 5P
