NEU-NE8MX-B-1

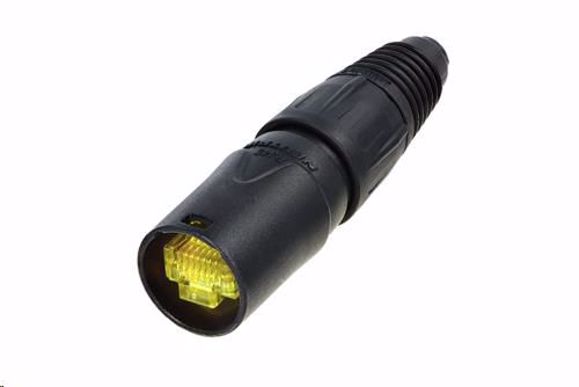

Cable connector carrier consisting of black chromium shell, fixing disk, chuck and boot

Cable connector carrier consists of a black chromium shell, fixing disk, chuck and boot. The boot (same as X-Series) is suitable for cable diameters from 3.5 - 8 mm. For non preassembled cables only. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. Features & Benefits •The RJ45 system for harsh and demanding environment •Cable connector carrier accepts the most common RJ45 plugs (see list at downloads) •Rugged diecast shell and unique chuck type strain relief •Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors •O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit •Accessories include color coded boots in 9 standard colors
Manufacturer: Neutrik
Availability: In stock
Products specifications
Color Black
Contacts 8P
Products specifications
Color Black
Contacts 8P
