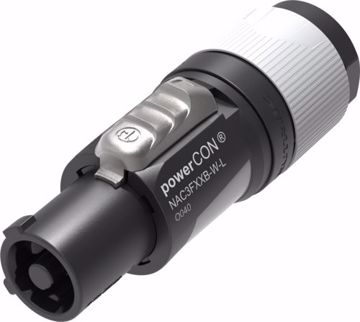

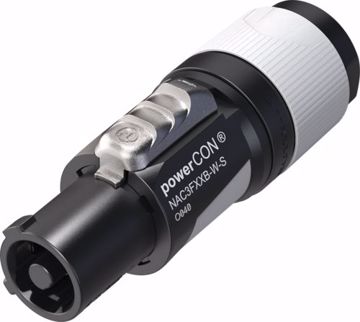

Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 6 - 12 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
powerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables
powerCON 20 A
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Appliance inlet connector, 1/4'' flat tab terminals
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
Appliance inlet
True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20 A)
Easy and reliable twist lock system
Extremely robust and reliable
ENEC certified according to IEC 60320
UL recognized components
IP65 ingress protection in mated condition and unmated in combination with SCNAC-MPX
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
BLUE - Male Panel PowerCON - 20A power-in, 3/16'' flat tab terminals
Chassis connector, power-in, 3/16" flat tab terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, ie the powerCON should not me connected or disconnected under load or live!
Features & Benefits
Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
UL, cUL recognized components, VDE certified
Branded with unique hologram - guarantees genuine and authentic Neutrik product
