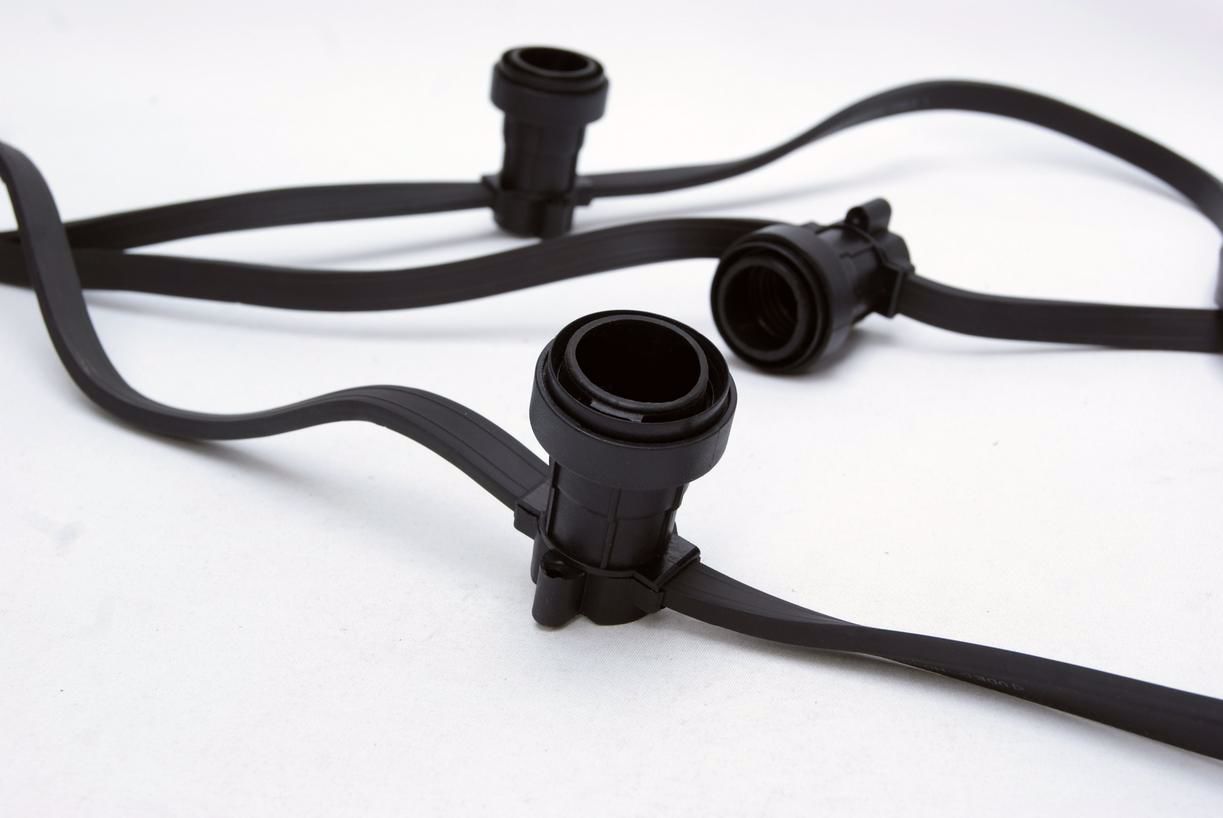

PRI-CABLE-PREMADE-0.5M

Bulb e27 Led 1W clear warm white

DATA CABLE 2 x CAT6A U/FTP (10 GIG ETH CL. EA) + 4 x AES/EBU-DMX (0.22mm²) PAIRS - OD: 20,0mm

Technical data - Network

Core: 2

Conductor: Nr.4 x Twisted Pairs x 0,25 mm² / 23 AWG (1 x 0,57 mm) Oxygen free Copper

Drain Wire: 0,14 mm² / 26 AWG (1 x 0,40 mm) Tinned Oxygen free Copper (OFC)

Insulation Wires: Ø 1,25 mm TIA/EIA 568 A-B Skin FPE

Sheath: Ø 8,0 mm Black Numbered PVC

Shield: Alu-Polyester Foil ,100% Coverage

DC Loop R Cond : 145 Ω/Km

DCR Shield: N.D.

Capacitance C/C: 45 nF/Km

Impedance (Z0): 100 ?

NPV: 76%

Standard: ISO/IEC 11801

Matching Plug: RJ45(cat6)

Technical data - Digital

Core: 4

Conductor: Nr.2 x 0,22 mm² / 24 AWG (28 x 0,10 mm) Tinned Oxygen free Copper (OFC)

Drain Wire: 0,22 mm² / 24 AWG (7 x 0,19 mm) Tinned Oxygen free Copper (OFC)

Insulation Wires: Ø 1,4 mm Blue, White Gas-injected FPE

Sheath: Ø 3,8 mm Black PVC

Shield: Alu-Mylar Foil ,100% Coverage

DC Loop R Cond : 86 Ω/Km

DCR Shield: 70 Ω/Km

Capacitance C/C: 37 nF/Km

Capacitance C/S: 57 nF/Km

Impedance (Z0): 110 ?

Standard: AES/EBU,DMX 512

Matching Plug: XLR, TRS Jack

CODING RING XX-SERIE

Colored coding rings. Color ring can be changed without unsoldering insert

Cable Female 3P, Black body, silver contacts

3 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product
