SOM-200-0405

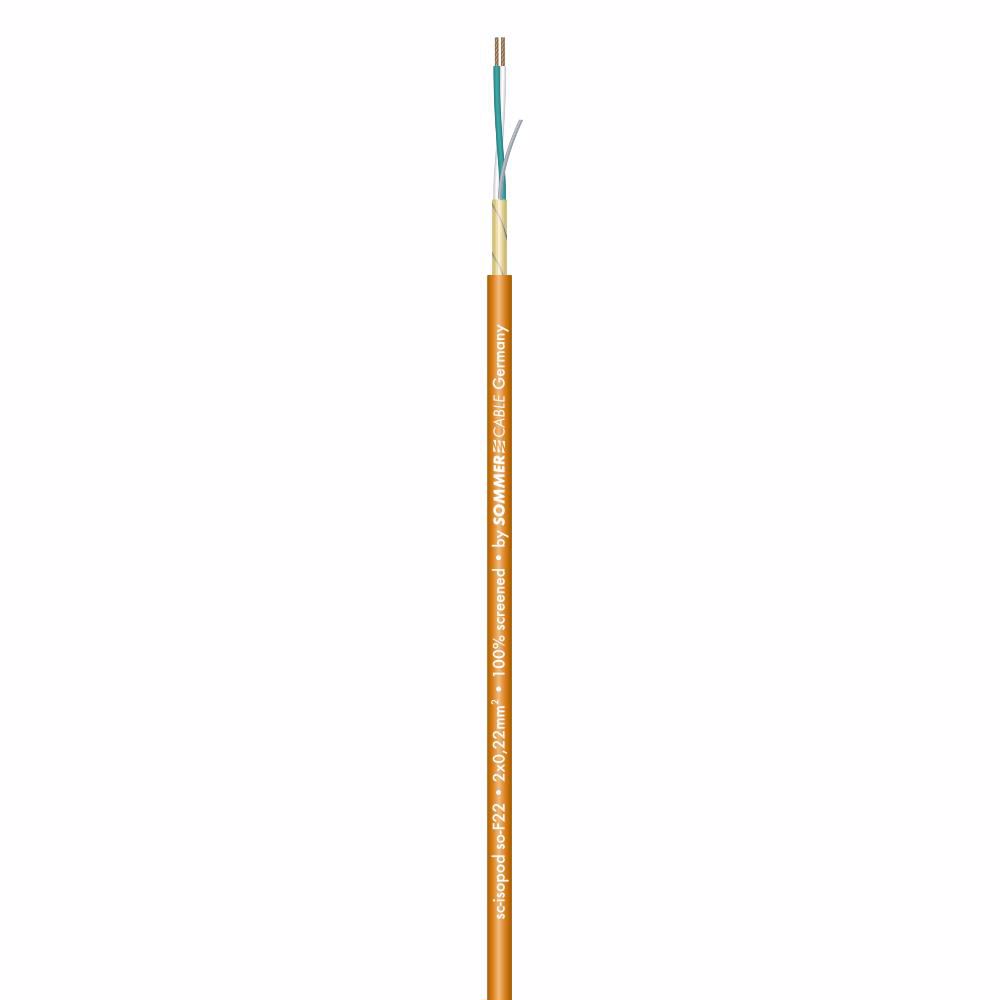

Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; orange

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application: Patch cable - Colour: orange - Colour detailed: orange - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 3,3 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: AL / PT foil + AL / PT foil + filler strand, tin-plated - Copper strands (audio): 7 - Copper strand Ø (audio): 0,20 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,12 mm - Weight per 1 m: 16 g - Fire load per m: 0,05 kWh - Style variant: round - Shielding factor: 100 % - Packing: 200 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 3,3 mm - Height: 3,3 mm - Capac. cond./cond. per 1 m (audio): 74 pF - Capac. cond./shield. per 1 m (audio): 143 pF - Insulation resist. per 1 km: 0,2 GΩ - Insulation resist. per 1 km (audio): 0,2 GΩ - Conductor resistance per 1 km: 88 Ω - Shield. resistance per 1 km: 75 Ω Only available on full 200m lenghts
Manufacturer: Sommer
Availability: In stock
Customers who bought this item also bought

SOM-200-0406

Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; grey

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application: Patch cable - Colour: grey - Colour detailed: grey - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 3,3 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: AL / PT foil + AL / PT foil + filler strand, tin-plated - Copper strands (audio): 7 - Copper strand Ø (audio): 0,20 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,12 mm - Weight per 1 m: 16 g - Fire load per m: 0,05 kWh - Style variant: round - Shielding factor: 100 % - Packing: 200 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 3,3 mm - Height: 3,3 mm - Capac. cond./cond. per 1 m (audio): 74 pF - Capac. cond./shield. per 1 m (audio): 143 pF - Insulation resist. per 1 km: 0,2 GΩ - Insulation resist. per 1 km (audio): 0,2 GΩ - Conductor resistance per 1 km: 88 Ω - Shield. resistance per 1 km: 75 Ω Only available on full 200m lenghts

SOM-490-0051-425

Speaker Cable Elephant SPM425; 4 x 2,50 mm²; PVC Ø 10,20 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: ELA 100 V - Application area: Studio / Broadcast - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Speaker Cable - Colour: black - Colour detailed: black - Jacket material: PVC - Jacket Ø: 10,2 mm - Number of Channels (audio): 1 - Inner conductor (audio): 4 - Inner conductor (audio): 2,5 mm² - Inner conductor Ø (audio): 1,78 mm - AWG (audio): 13 - Copper strands (audio): 78 - Copper strand Ø (audio): 0,20 mm - Conductor insulation Ø: 3,05 mm - Weight per 1 m: 180 g - UV-resistant: yes - Fire load per m: 0,80 kWh - Style variant: round - Packing: bulk stock - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 10,2 mm - Height: 10,2 mm - Insulation resist. per 1 km: 0,005 GΩ - Insulation resist. per 1 km (audio): 0,005 GΩ - Conductor resistance per 1 km: 7,7 Ω - Test voltage: 2000 V

NEU-NC3FD-LX-BAG

Panel 3 pole Female, Black housing, silver contacts, D-size


NEU-NC3MD-LX-BAG

Panel 3 pole Male, Black housing, silver contacts, D-size

3 pole male receptacle, solder cups, black metal housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Features & Benefits •All metal housing offers best overall RF protection and electromagnetic shielding •Duplex ground contact for excellent contact integrity between chassis and cable connector •Male connector's retention bar replaces plastic design with all metal version improving pull-out force •Larger solder contacts for easier termination •Optional connection to easily join pin1 to chassis ground •D-style housing provides installation compatibility with industry standard D mounting dimensions
Related products

NEU-NC3MXX-BAG

Cable Male 3P, Black body, silver contacts

3 pole male cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without "window", more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product

NEU-NC3MXX

Cable Male 3P, Nickel body, silver contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Declaration of Conformity


NEU-NC3FXX-BAG

Cable Female 3P, Black body, silver contacts

3 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product

NEU-NC3FXX

Cable Female 3P, Nickel body, silver contacts

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Unique cage design of female contact for low contact resistance and high integrity Female contact incorporates a solder barrier to prevent solder running into the contact mating area Female connector with improved solid metal latch which is larger and easier to handle Additional ground spring contacts for better shell ground continuity Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design - valuable and handy Rugged zinc diecast shell, longlasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram - guarantees genuine and authentic Neutrik product
