SOM-490-0351-840

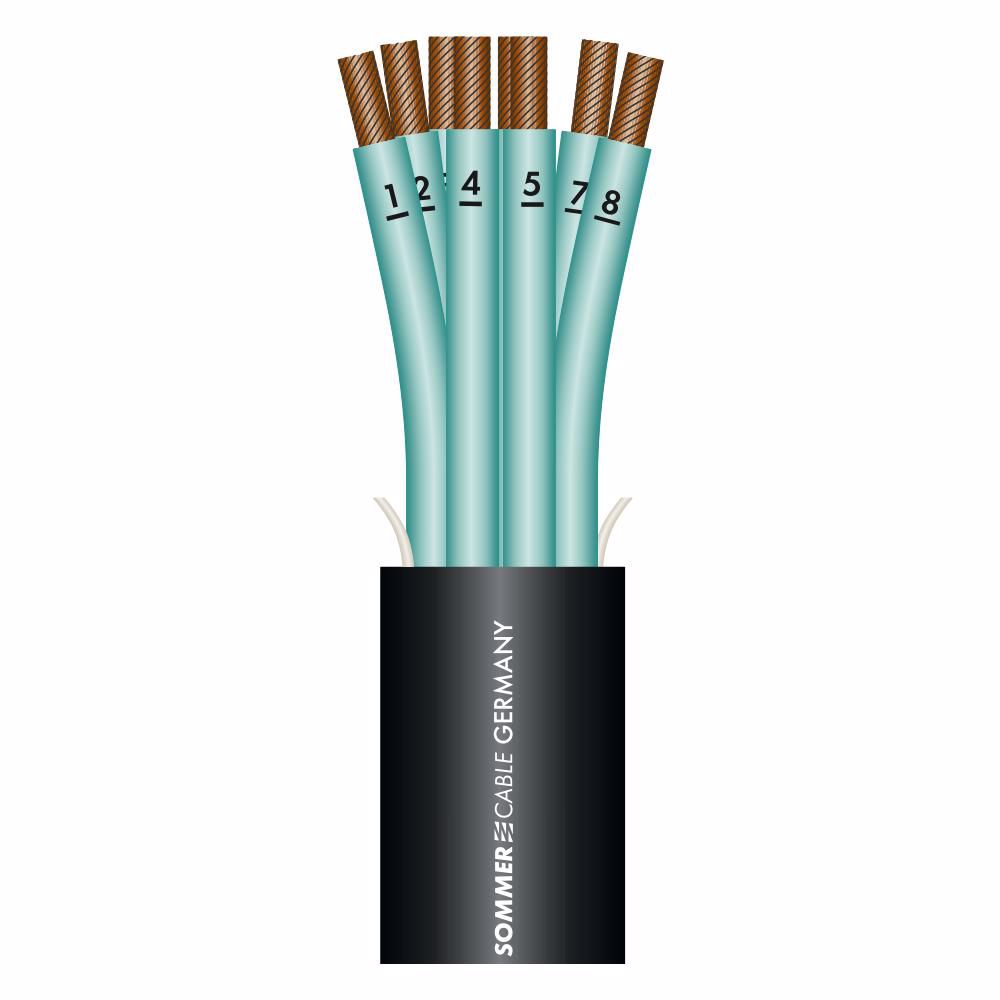

Speaker Cable Elephant Robust SPM840; 8 x 4,00 mm²; PVC Ø 18,50 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Mobile outdoor / indoor - Application area: Installation - Application area: Studio / Broadcast - Application area: ELA 100 V - Application area: Stage / live - Application: Speaker Cable - Colour: black - Colour detailed: black - Jacket material: PVC - Jacket Ø: 17,7 mm - Number of Channels (audio): 1 - Inner conductor (audio): 8 - Inner conductor (audio): 4 mm² - Inner conductor Ø (audio): 2,26 mm - AWG (audio): 11 - Copper strands (audio): 128 - Copper strand Ø (audio): 0,20 mm - Conductor insulation Ø: 3,75 mm - Weight per 1 m: 570 g - UV-resistant: yes - Fire load per m: 2,25 kWh - Style variant: round - Packing: bulk stock - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 17,7 mm - Height: 17,7 mm - Insulation resist. per 1 km: 0,005 GΩ - Insulation resist. per 1 km (audio): 0,005 GΩ - Conductor resistance per 1 km: 4,5 Ω - Test voltage: 2000 V
Manufacturer: Sommer
Availability: In stock
Products specifications
SQMM 4mm²
Contacts 8P
Products specifications
SQMM 4mm²
Contacts 8P
