SOM-500-0151-1

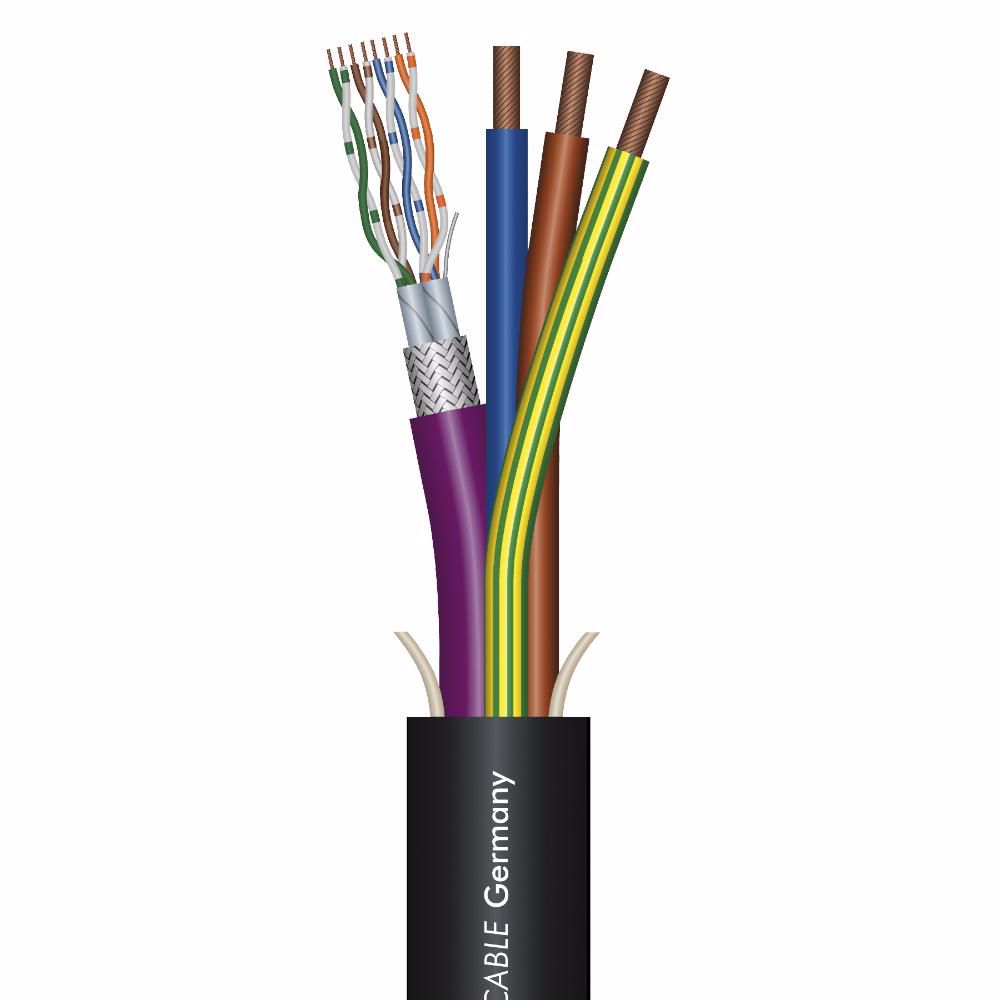

SC-Monocat 110C; power: 3 x 2,50 mm²x CAT.7; PVC Ø 13,80 mm; black

Technical Data: - Name: SC-Monocat 110C - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Properties: Analog - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application area: Installation - Application: hybrid cable - Colour: black - Colour detailed: black - Jacket material: PVC - Jacket Ø: 13,8 mm - Inner conductor (power): 3 - Inner conductor (network): 8 - Inner conductor (power): 2,5 mm² - Inner conductor (network): 0,14 mm² - Shielding (network): AL / PT-foil + Copper braiding tin-plated - Conductor insulation material: Foam / Skin-PE - Weight per 1 m: 205 g - UV-resistant: yes - Fire load per m: 0,77 kWh - Style variant: round - Shielding factor: 100 % - Packing: bulk stock - Max. section length: 100 m - Temperature min.: -20 °C - Temperature max.: 70 °C - Width: 13,8 mm - Height: 13,8 mm - Capacity wire/wire at 1m (network): 44 pF - Impedance (network): 100 Ω - Insulation resist. per 1km (power): 5 GΩ - Nominal voltage (power): 300 V - Operating voltage (power): 300 V

Manufacturer: Sommer

Availability: In stock
