SOM-500-0161-2

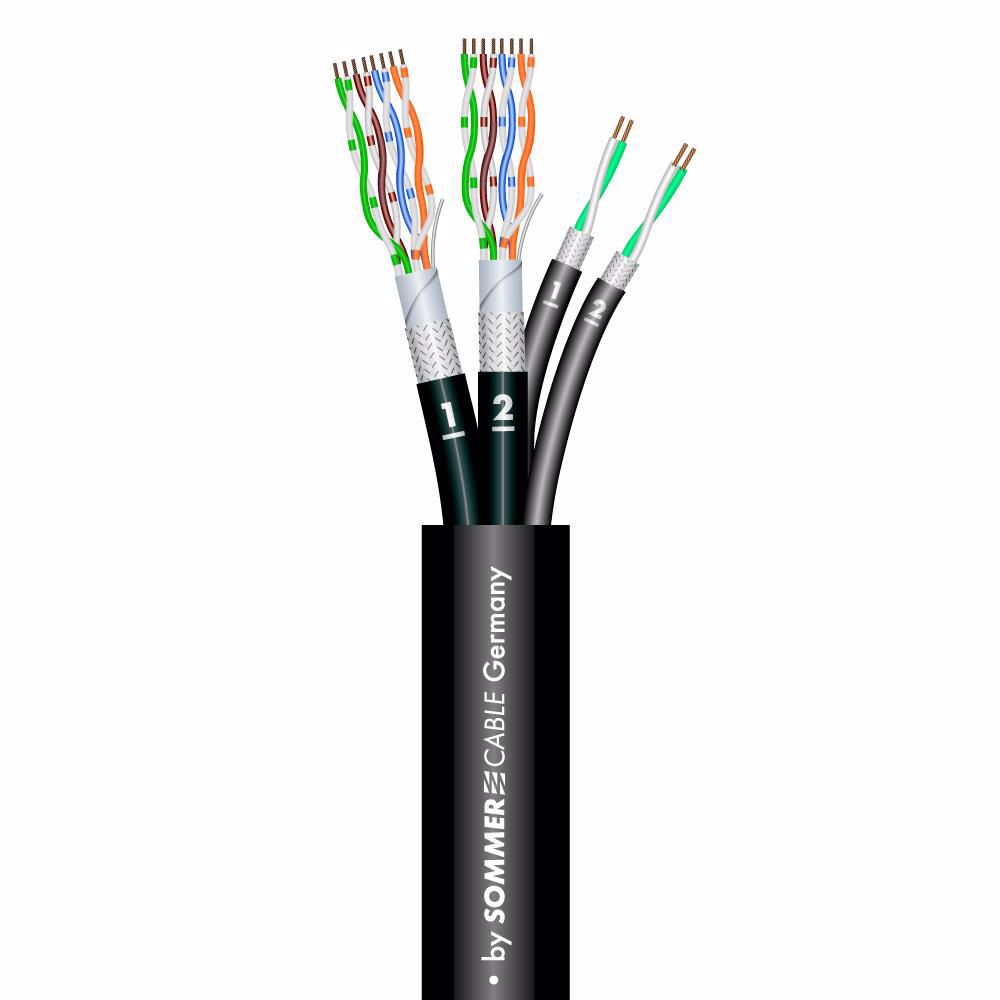

SC-Monocat 202; 2 x CAT.7; DMX: 2 x 0,25 mm²; PVC Ø 15,60 mm; black

Technical Data: - Name: SC-Monocat 202 - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application area: Studio / Broadcast - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application: hybrid cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 15,6 mm - Number of Channels (AES/EBU, DMX): 2 - Number of Channels (network): 2 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (network): 8 - Inner conductor (AES/EBU, DMX): 0,25 mm² - Inner conductor (network): 0,14 mm² - Shielding (AES/EBU, DMX): Copper spiral, tin-plated - Shielding (network): AL / PT-foil + Copper braiding tin-plated - Conductor insulation material: Foam / Skin-PE - Weight per 1 m: 380 g - UV-resistant: yes - Fire load per m: 1,01 kWh - Style variant: round - Shielding factor: 100 % - Packing: bulk stock - Max. section length: 100 m - Temperature min.: -20 °C - Temperature max.: 75 °C - Width: 15,6 mm - Height: 15,6 mm - Capacity wire/wire at 1m (network): 44 pF - Impedance (network): 100 Ω
Manufacturer: Sommer
Availability: Out of stock (On request)
