SOM-500-0281-2

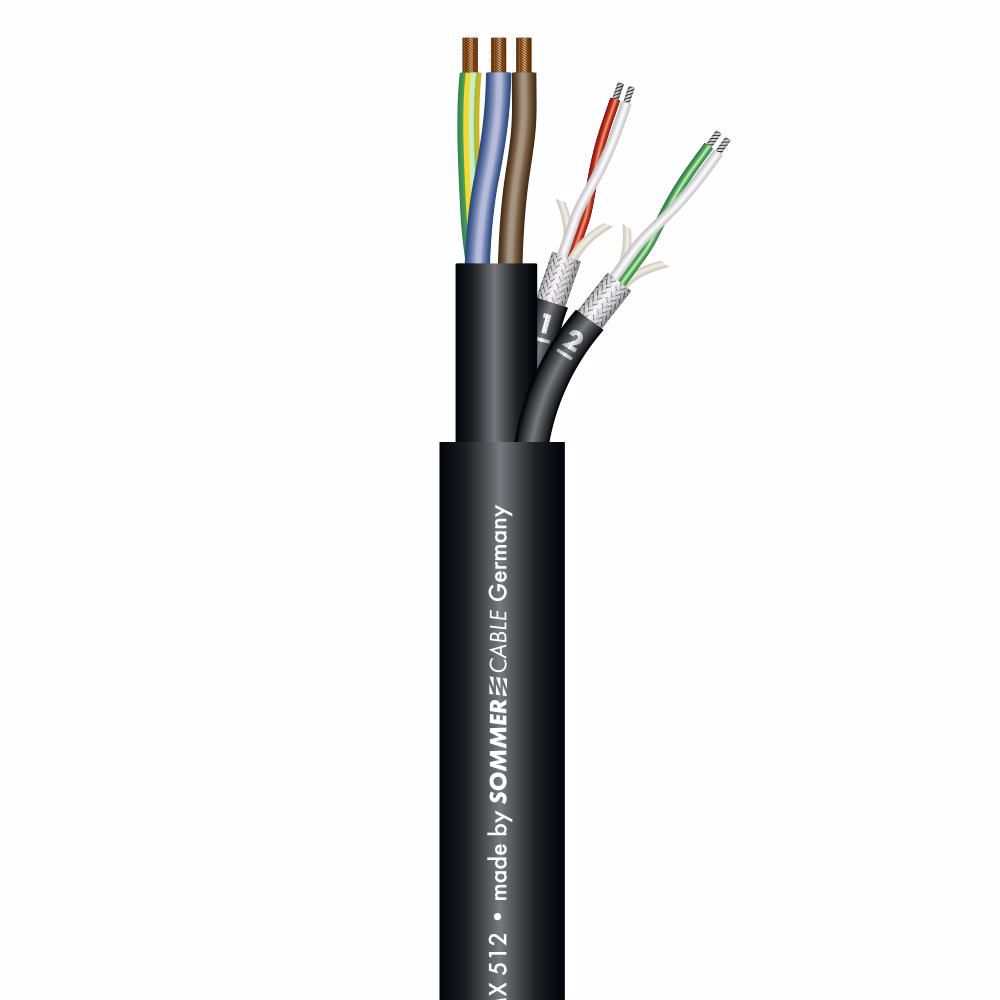

SC-Monolith 2 HV; power: 3 x 2,50 mm²; DMX: 2 x 0,25 mm²; PVC Ø 16,00 mm - Power OD: 8,3mm; black

Technical Data: - Name: SC-Monolith 2 HV - Properties: Digital 110 Ω AES / EBU - Properties: Analog - Properties: OFC oxygen free copper - Application area: Studio / Broadcast - Application area: Installation - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application: DMX & Power - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 16 mm - Jacket Ø (power): 8,3 mm - Jacket Ø (AES/EBU, DMX): 4,3 mm - Number of Channels (power): 1 - Number of Channels (AES/EBU, DMX): 2 - Inner conductor (power): 3 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (power): 2,5 mm² - Inner conductor (AES/EBU, DMX): 0,25 mm² - Inner conductor Ø (power): 1,78 mm - Inner conductor Ø (AES/EBU, DMX): 0,56 mm - AWG (power): 13 - AWG (AES/EBU, DMX): 23 - Shielding (AES/EBU, DMX): Braided mesh, tin-plated - Copper strands (power): 48 - Copper strand Ø (power): 0,25 mm - Copper strand Ø (AES/EBU, DMX): 0,20 mm - Wire insulation material (power): PVC - Conductor insulation Ø (power): 3,1 mm - Weight per 1 m: 313 g - UV-resistant: yes - Fire load per m: 0,92 kWh - Style variant: round - Shielding factor: 90 % - Packing: bulk stock - Temperature min.: -30 °C - Temperature max.: 70 °C - Width: 16 mm - Height: 16 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 52 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 89 pF - Surge impedance (AES/EBU, DMX): 110 Ω - Insulation resist. per 1 km (AES/EBU, DMX): 0,1 GΩ - Conductor resistance per 1 km (power): 80 Ω
