SOM-581-0051

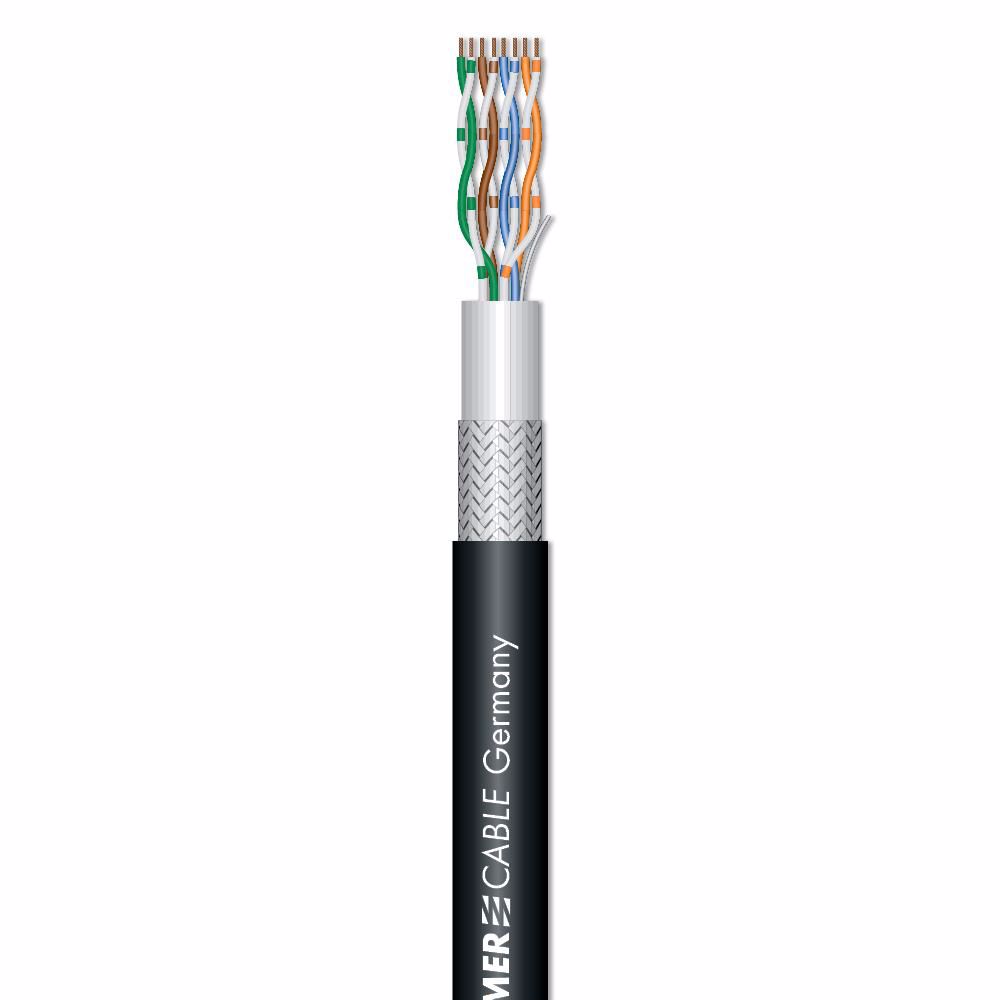

Cat.5 SC-Mercator CAT.5 PUR; PUR-FRNC; black, Ø 6,20 mm

Technical Data: - Properties: FRNC flame retardant - Properties: Halogen-free / LSZH - Properties: PUR - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application area: Installation - Application: Cat.5 - Colour: black - Colour detailed: black - Construction (network): SFTP 4x2x0,15mm² - Jacket material: PUR-FRNC - Jacket Ø: 6,2 mm - Number of Channels (network): 1 - Inner conductor (network): 8 - AWG (network): 26 - Shielding: AL / PT-foil + copper braiding 90 % tin-plated - Copper strands (network): 19 - Copper strand Ø (network): 0,10 mm - Conductor insulation material: Foam / Skin-PE - Weight per 1 m: 53 g - UV-resistant: yes - Fire load per m: 0,11 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Packing: 500 m spool - CAT-Type: CAT.5 - Max. section length: 65 m - Velocity factor: 0,73 - Temperature min.: -15 °C - Temperature max.: 70 °C - Width: 6,2 mm - Height: 6,2 mm - Capacity wire/wire at 1m (network): 48 pF - Impedance: 100 Ω - Insulation resist. per 1 km: 5 GΩ - Insulation resist. per 1 km (network): 5 GΩ - Loop resistance per km: 142 Ω
