SOM-600-0211

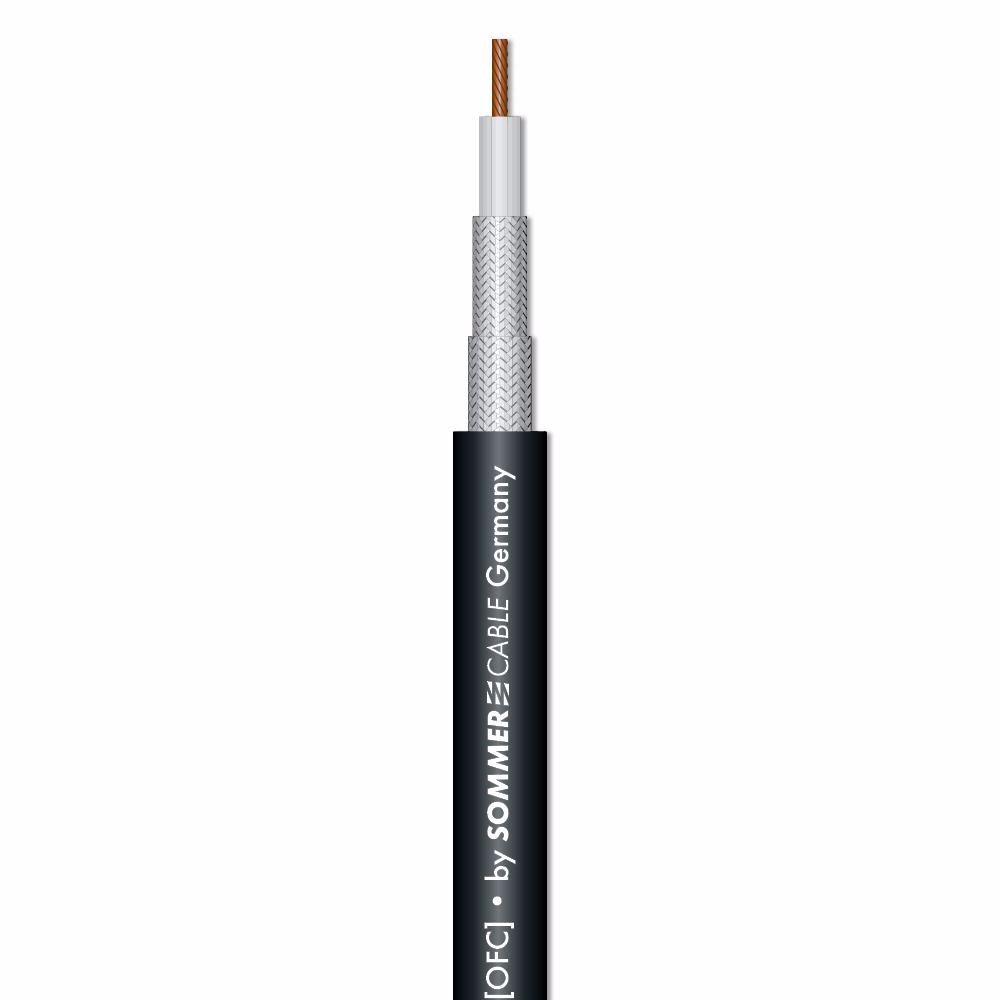

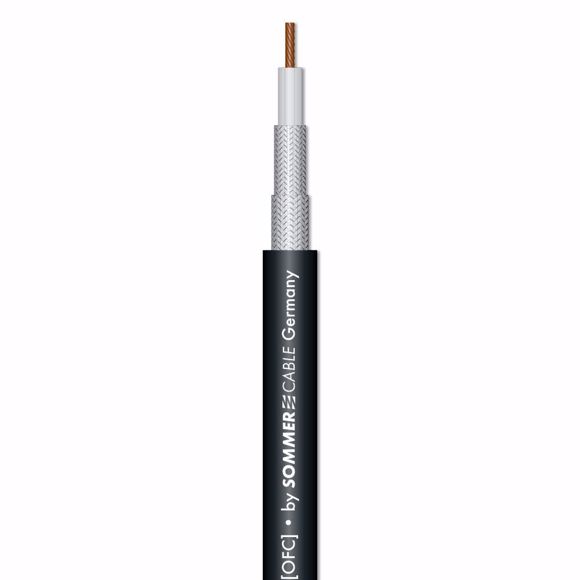

video cable SC-Vector Plus DZ; 1 x 1,20; PUR Ø 7,10 mm; black

Technical Data: - Name: SC-Vector Plus DZ - Properties: Analog - Properties: SDI - Properties: Digital 75 Ω - Properties: Halogen-free / LSZH - Properties: PUR - Properties: OFC oxygen free copper - Properties: FRNC flame retardant - Properties: HDTV - Application area: Studio / Broadcast - Application area: Mobile outdoor / indoor - Application area: ELA 100 V - Application area: Installation - Application: video cable - Colour: black - Colour detailed: black - Jacket material: PUR - Jacket Ø: 7,1 mm - Number of Channels (video): 1 - Inner conductor (video): 1 - Inner conductor (video): 0,88 mm² - Inner conductor Ø (video): 1,2 mm - AWG (video): 18 - Shielding: 2 x Copper braiding tin-plated - Copper strands (video): 7 - Copper strand Ø (video): 0,4 mm - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 4,8 mm - Weight per 1 m: 68 g - UV-resistant: yes - Style variant: round - Shielding factor: 98 % - Packing: 100 m, bulk stock - Velocity factor: 0,86 - Temperature min.: -30 °C - Temperature max.: 80 °C - Width: 7,1 mm - Height: 7,1 mm - Capacity wire/electic screen at 1m (video): 53 pF - Impedance: 75 Ω - Conductor resistance per 1 km: 20 Ω - Shield. resistance per 1 km: 5,6 Ω
Manufacturer: Sommer
Availability: In stock
