SOM-600-2791

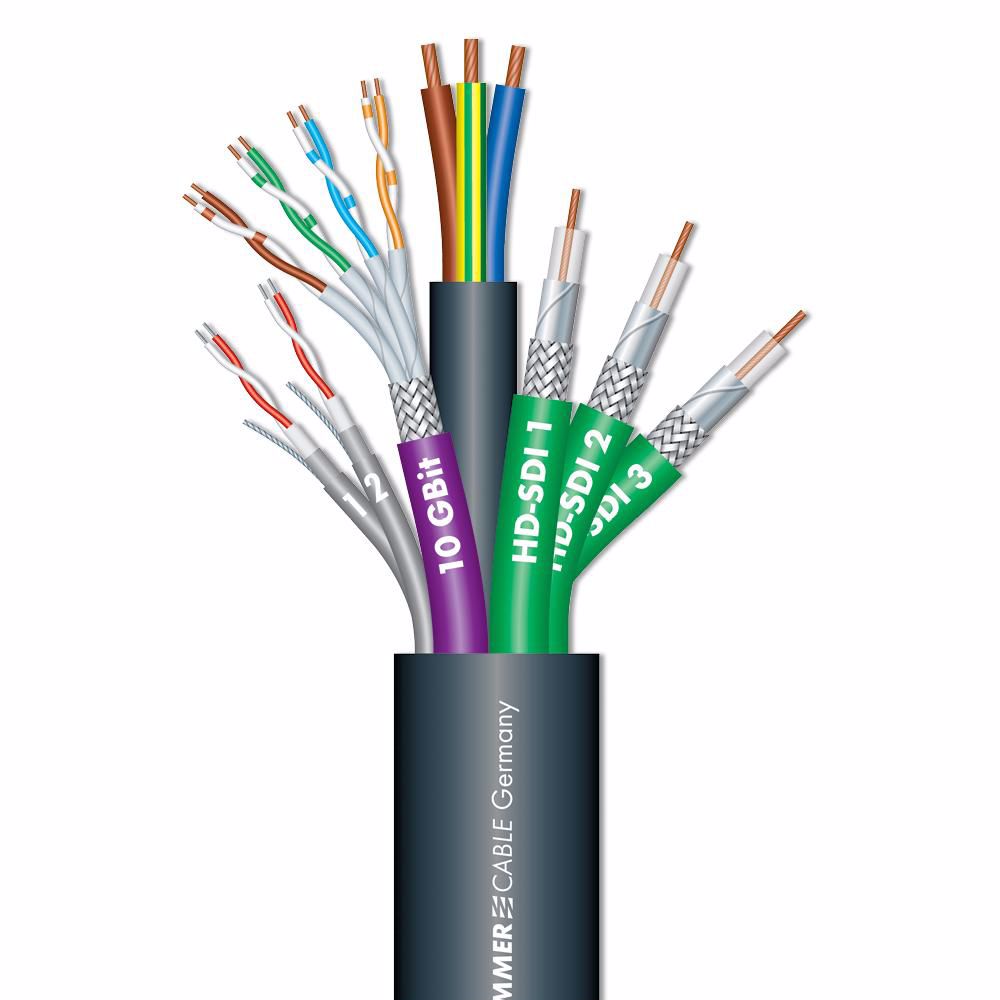

Transit MC 3231 HD-SDI; video: 3 x 1,20/5,00; audio: 2 x 2 x 0,15 mm²; power: 3 x 2,50 mm²;

Technical Data: - Name: Transit MC 3231 HD-SDI - Properties: Analog - Properties: OFC oxygen free copper - Properties: Digital 75 Ω - Properties: SDI - Application area: Installation - Application area: Mobile outdoor / indoor - Application area: Studio / Broadcast - Application: hybrid cable - Colour: black - Colour detailed: black - Construction: [3LI2YSCY0,1,2mm+2(2LI2Y0,15mm²)DY+(3LIY2,5mm²)Y+SFTP4x2xAWG26/7]Y - Construction (network): SFTP 4x2x0,14mm² - Jacket material: Soft-PVC - Jacket material (audio): PVC - Jacket material (video): PVC - Jacket material (power): PVC - Jacket material (network): PVC - Jacket Ø: 24 mm - Jacket Ø (audio): 3 mm - Jacket Ø (video): 6,95 mm - Jacket Ø (power): 10,2 mm - Jacket Ø (network): 6,4 mm - Number of Channels (audio): 2 - Number of Channels (video): 1 - Number of Channels (power): 1 - Number of Channels (network): 1 - Inner conductor (audio): 2 - Inner conductor (video): 3 - Inner conductor (power): 3 - Inner conductor (network): 8 - Inner conductor (audio): 0,15 mm² - Inner conductor (video): 1,13 mm² - Inner conductor (power): 2,5 mm² - Inner conductor (network): 0,14 mm² - Inner conductor Ø (audio): 0,44 mm - Inner conductor Ø (video): 1,2 mm - Inner conductor Ø (power): 1,78 mm - Inner conductor Ø (network): 0,42 mm - AWG (audio): 25 - AWG (video): 18 - AWG (power): 13 - AWG (network): 26 - Shielding (audio): Copper spiral - Shielding (video): Copper braiding + AL / PT foil - Shielding (network): Copper braiding + AL / PT-foil per wire pair (CAT) - Wire insulation material (video): Foam / Skin-PE - Conductor insulation Ø (video): 5 mm - Weight per 1 m: 580 g - UV-resistant: yes - Fire load per m: 3,57 kWh - Style variant: round - Shielding factor: 100 % - Packing: bulk stock - Velocity factor: 0,77 - Temperature min.: -20 °C - Temperature max.: 75 °C - Width: 24 mm - Height: 24 mm - Capacity wire/wire at 1m (network): 43 pF - Capacity wire/electic screen at 1m (video): 52 pF - Impedance (video): 75 Ω - Impedance (network): 100 Ω - Insulation resist. per 1 km (network): 5 GΩ - Conductor resistance per 1 km (network): 143 Ω - Shield. resistance per 1 km: 12 Ω
