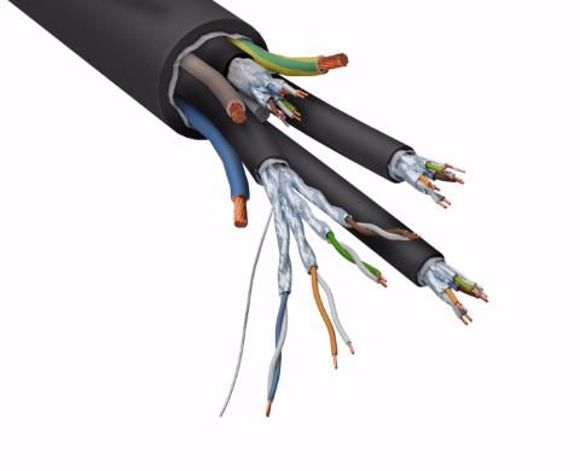

DATA CABLE 4 x CAT6A U/FTP (10 GIGABIT ETHERNET CLASS EA) + POWER 3x6mm² - OD: 25,0mm
Technical data - Network
Core: 4
Conductor: Nr.4 x Twisted Pairs x 0,25 mm² / 23 AWG (1 x 0,57 mm) Oxygen free Copper
Drain Wire: 0,14 mm² / 26 AWG (1 x 0,40 mm) Tinned Oxygen free Copper (OFC)
Insulation Wires: Ø 1,25 mm TIA/EIA 568 A-B Skin FPE
Sheath: Ø 8,0 mm Black Numbered PVC
Shield: Alu-Polyester Foil ,100% Coverage
DC Loop R Cond : 145 Ω/Km
DCR Shield: N.D.
Capacitance C/C: 45 nF/Km
Impedance (Z0): 100 ?
NPV: 76%
Standard: ISO/IEC 11801
Matching Plug: RJ45(cat6)
Technical data - Energy
Conductor: Nr.3 x 6,0 mm² / 10 AWG (Class 5 - Stranded Cable) Copper
Insulation Wires: Ø 4,8 mm Y/G, Blue, Brown PVC
Sheath: Free
DC Loop R Cond : IEC_60344
Standard: IEC_60228 - Class 5
Syntax SGH 16.1 Compatible
This cable has been specifically designed to be used in combination with the Syntax Gigamod Hybrid 16.1 connectors fitted with the 16 amp 2p+E central insert.
