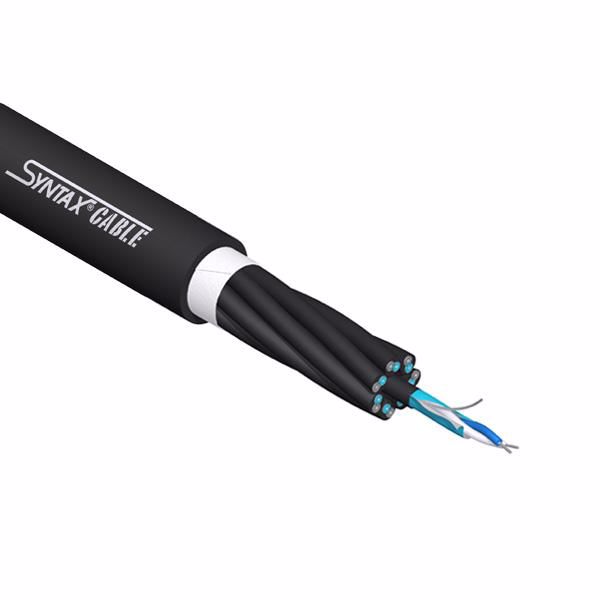

SYN-AES8P

AES/EBU 8 PAIRS - OD: 14,8mm

The SYNTAX DIGITAL MULTIPAIR cables are developed for those applications (either in fixed installations or outdoors) where the management of digital equipment are a very important part of the whole system. The cables have been designed in accordance with the standard AES/EBU specifications, 110 ohm impedance and a very low capacitance thanks to the use of a special gas injected foam for the conductors’ insulation. The particular internal arrangement solves the problems of twisting and knotting of the cores while keeping the right flexibility. The pairs are twisted and individually shielded by aluminium foil with drain wire. The external jacket of each pair is individually numbered. The overall external jacket is made with a high tech PVC polymer, very flexible and impact absorbing, slipping over rough surfaces and granting suppleness even with low temperatures
Manufacturer: Syntax
Availability: Out of stock (On request)
