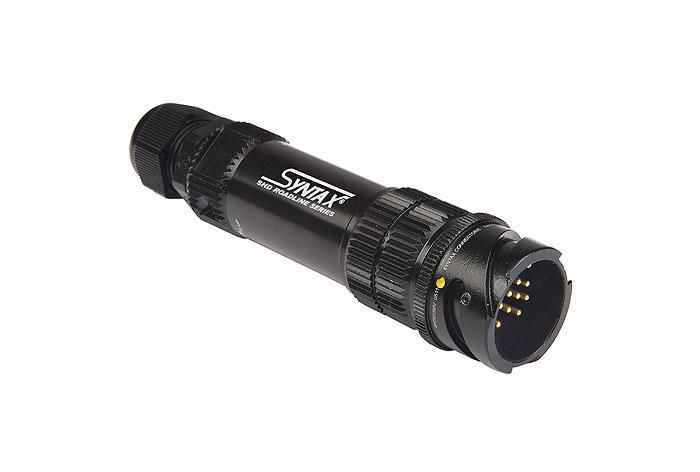

SYN-RL13MC

Female cable 13p M20, SHD

SHD ROADLINE Inline and panel versions available The SYNTAX® SHD ROADLINE series is a newly conceived product, suitable for outdoor live performances (PA) and broadcasting (OB). SYNTAX® SHD ROADLINE is extremely robust, in compliance with Mil. C505 and VG 95234 military standards. This version has been enhanced to ensure long term reliability and increased number of mating cycles in rigorous conditions. It is also provided with bigger coupling roller pins for easier coupling. The increased thickness of the locking ring is meant to avoid ovalization caused by unintentional blows and supplied with enlarged rolling pins for easy mating. Deeper knurling on the hand grip and oversize locking ring also help better mating/demating. "Heavy duty" backshell is designed to ensure effective protection and easy wiring. All SYNTAX® SHD ROADLINE connectors are suited for outdoor applications being IP67 waterproof. Accessories, assembling tools and protection caps are supplied. Protection caps are directly laced to the backshell through a cord made up of 7 stainless steel strands protected by special anti scratch teflon tubing. Different options are available to meet even the most demanding requirements. SYNTAX® SHD Roadline series is supplied in several configurations: 13, 19, 25, 37, 54, 85, 100 and 150 pins.

RearTWIST HD BNC cable connector for Belden 1855ENH

The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra Crimp size: Pin: 1.6 mm (square) Shield: 5.0 mm (hex) Features & Benefits •“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) •Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. •True 75 ? design meets the stringent HDTV / DVD requirements •Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! •Snug-fit center pin insert provides tactile feedback •Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies •Excellent cable protection and retention •Precise Swiss machined brass parts for outstanding durability •Accessories include color coded boots in 10 standard colors, crimp tool and dies
