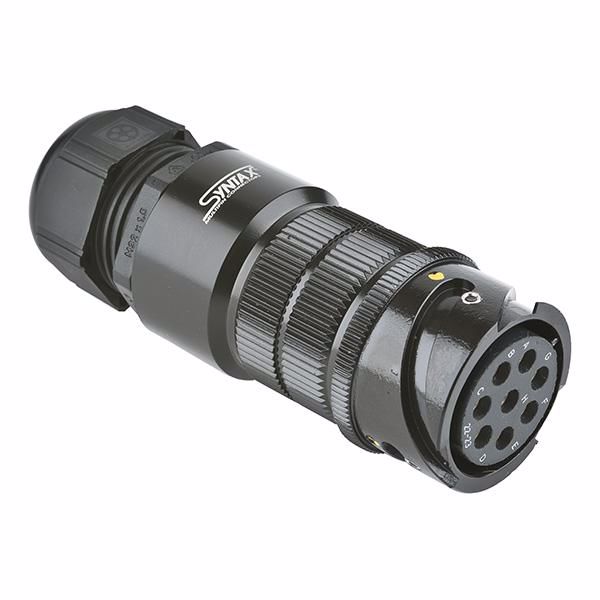

SYN-SPK08FC-ring

Bushing XX-Series

Coloured boot for XX series XLR connectors, available in 10 standard colors. Used to easily distinguish cables. They have to be installed before the connector is soldered.

SPEAKER CABLE - 8 x 2.5mm² - OD: 14mm

This range of SYNTAX® SPEAKER cables has been developed to obtain maximum flexibility and excellent mechanical properties. The main characteristic is the extremely dense stranding of the conductors’ section, which results in high flexibility, increased conductivity and brilliance of sound. They feature large conductor size to minimize resistance to high power conduction. All the conductors are numbered and maintained properly clustered inside the outer PVC sheath thanks to the internal lined ridges, even under heavy usage and continuous rewinding. The cores are talc dusted to slide against one another, thus granting optimal handling. The external diameters is perfectly suitable for usage with the most commonly used power connectors. Finally, the arctic polymer PVC jacket allows good flexibility and handling in a wide range of temperatures.

DMX Binary 234 AES/EBU MKII; 2 x 0,34 mm²; PVC Ø 6,20 mm; black

Technical Data: - Properties: OFC oxygen free copper - Properties: Digital 110 Ω AES / EBU - Properties: Analog - Application area: ELA 100 V - Application area: Installation - Application area: Mobile outdoor / indoor - Application area: Stage / live - Application area: Studio / Broadcast - Application: DMX - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,2 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper spiral shielding + aluminum steamed fleece - Copper strands (AES/EBU, DMX): 19 - Copper strand Ø (AES/EBU, DMX): 0,15 mm - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 1,5 mm - Weight per 1 m: 50 g - UV-resistant: yes - Fire load per m: 0,17 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 6,2 mm - Height: 6,2 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 28 Ω

Power Strip - 4 Channel - 3G1,5 - STRAIGHT - PENAARDE (BE-FR earth)

Features

• comes with 8 cm transparent shrink sleeve (not shrunk) for custom labelling
• child protection
• socket type: French (type E)

Specifications

• number of sockets: 4
• cable: H05VV-F 3G1.5
• cable length: 1.5 m
• colour: black
• max. power: 3500 W
• voltage: 230 VAC 16 A
