TLG-J00026A2001

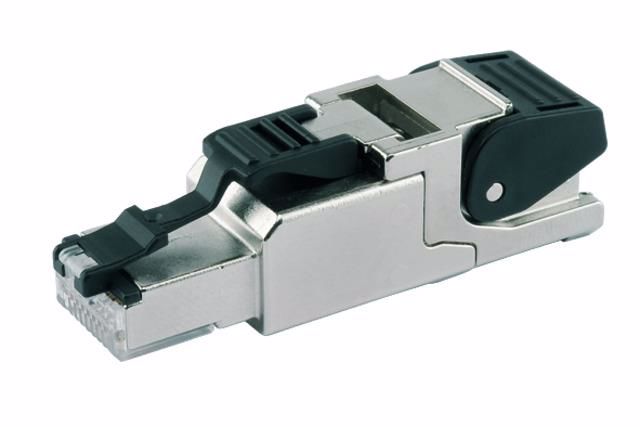

Field assembly RJ45 connector Cat6A type J00026A2001



field assembly RJ45 plug MFP8 T568 B Cat.6A; AWG24/1-AWG22/1, AWG27/7-AWG22/7



Performance Characteristics

  • pre-assembled protection cap
  • robust zinc diecast housing
  • 360° shielding
  • full metal shielding between pairs of wires
  • three strain relief settings (cable diameters 5.0 mm to 9.0 mm)
  • can be assembled in 60 seconds without any special tools
  • optimised for the field, including demanding applications
  • secure transmission even with outside interference
  • four-chamber wire manager (available with colour code T568A or T568B and PROFINET)
  • suitable for cabling in office buildings, data centers, industrial facilities and home networks
  • supreme reliability
  • ideal for network repairs, special lengths and extensions
  • piercing contacts suitable for solid and stranded conductors
Manufacturer: Telegartner
Availability: Out of stock (On request)
Products specifications
Material Aluminum
Products specifications
Material Aluminum
