WEI-9005700000

CST VARIO

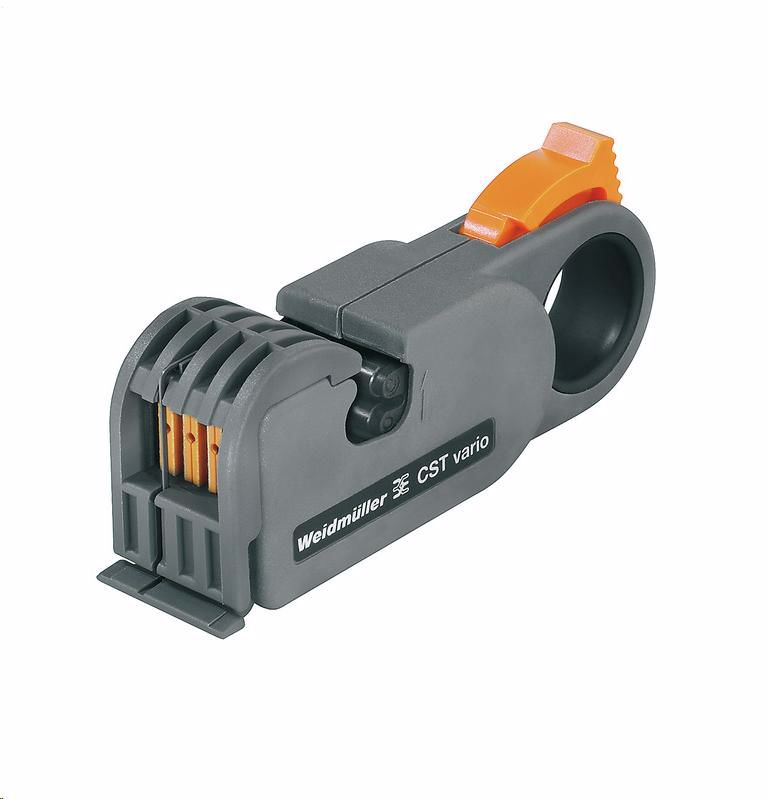

Stripping tool Weidmüller CST vario - 9005700000

The stripping tool CST vario - 9005700000 from Weidmüller can be used for coaxial cables and shielded data cables with a diameter from 2.5 to 8 mm. The 1-, 2- and 3-stage stripping can be carried out with the CST vario in one operation.

Manufacturer: Weidmüller
Availability: Out of stock (On request)
Coax cable stripper
Coax cable stripper
Customers who bought this item also bought

BEL-1505F-BK

COAX Cable RG59/U - BLACK - Flexible

22 AWG stranded (7x29) .031" bare compacted copper conductor, gas-injected foam HDPE insulation, tinned copper double braid shield (95% coverage), PVC jacket.

Declaration of Conformity

BEL-4694F

Coax cable 12G-SDI - BLACK - Semi-Flexible

- 12 GHz Coax
- 4K UHD Precision Flexible Video Cable
- RG-6/U Type
- 75 Ohm
- 18 AWG solid .040" silver plated copper conductor
- Gas-injected foam HDPE insulation
- dual tinned copper braid shield (95% coverage each)
- CM
- PVC jacket


Declaration of Conformity

NEU-NBNC75BJP9X

RearTWIST UHD BNC Cable Connectors for Belden 1505F

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. Features & Benefits •Optimized contact pin and insulator design for UHD-data transmissions •Proven rearTWIST technology •Swiss antraloy plating •Fully compatible with conventional BNC chassis connectors •Improved return loss values at high frequencies

PRM-CAT6

Axept CAT6S/FTP cable black

• S/FTP Cat.6 4x2xAWG 27 LSHZ
• Outer diameter 6,2mm
• Flame retardant acc. to IEC-60332-1
• Length imprinted on strain relief
• Contacts gold-plated

Connector: RJ45 plug shielded and gold plated contacts
Boot: PVC 75A / Length imprinted
Cable: S/FTP Cat.6 4x2xAWG27 LSZH
Outer diamete: r 6.2mm
Bending radius: 5 x outer diameter
Jacket: Flame retardant acc. to IEC 60332-1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568.2-1
Halogen Free ***Gigabit***
general temperature range 0° up to + 60°C
withstand voltage 500V DC
