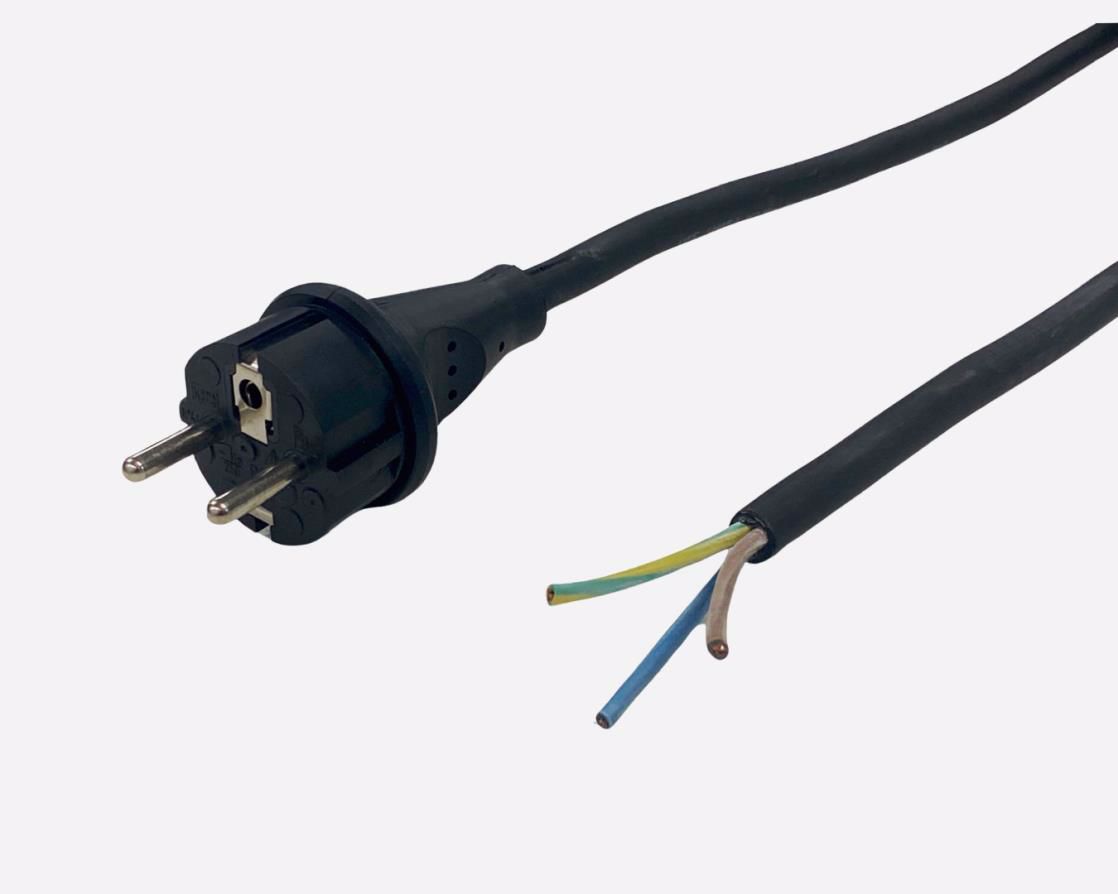

AXE-PC1.5

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

Procable softflex 18x1,5mm² black

Type: MULTIFLEX-SOFT 18 x 1,5 mm2, black
Nominal voltage: 300/500 V
Conductor: finely wired acc. to VDE 0295
Copper construction: 30 x 0,25 mm
Core insulation: PVC-mixture – shorehardness 90+/- 3
Laying of cores: Centre: PVC filler, 1. lay = 6 cores,
2. lay = 12 cores
Core colours: 17 x black with white numbers+1 green-yellow
Jacket: Soft PVC-mixture, black (RAL 9005)
Shorehardness 65 +/- 3
Presure extrusion, with talc, printing: optional
Outside diameter: approx. 16,0 ± 0,40 mm
Test voltage > 3 kV – at 50 Hz eff. for 1 minute
Insulation resistance: min. 20 MOhm x km at 20°C
Conductor resistance: max. 13,3 Ohm/km at 20°C
Operating voltage: max. 500 V
Temperature rating: static: -30 up to +80 °C
operating: - 5 up to +70 °C
This cable is flame retardant acc. DIN VDE 0482 part 265-2-1



Cable POWERCON TRUE1 TOP - 16 A, Outdoor Application

Locking female cable connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing

Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing. Features & Benefits •Optimized gold plated cage type center contact for UHD signals as 4K or 8K •Swiss antraloy plating •Grounded panel mount •Standard D-shape housing provides flush mounting and protection from damage •Color coding possible •Fully compatible with conventional BNC cable connectors Optimized Return Loss Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
