BAL-132002

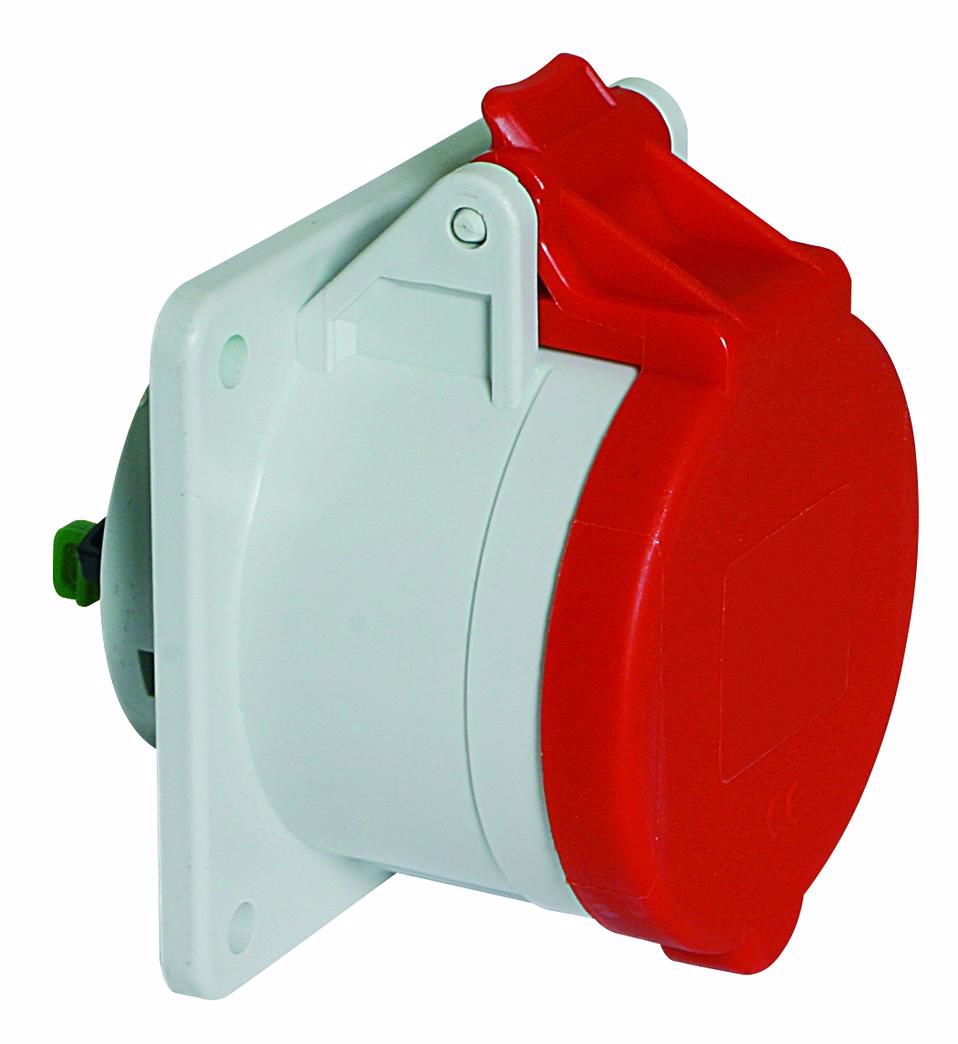

Female chassis CEE 32A/380V/5P

Alle Bals stekkers en koppelstekkers zijn impact-bestendig en stabiel bij extreem hoge temperaturen. Ze zijn ook duurzaam en bevatten geen PVC, cadmium of halogeen. Bals onderscheidt zich nog door gebruik te maken van nieuwe ontwikkelingen om de installatie veiliger en gemakkelijk te maken.

Zo maakt de Duitse fabrikant gebruik van Kontex contact. Hierbij is er een gedefinieerd contact dankzij veermechanisme in roestvrij staal.

Verder gebruiken ze ook een schroefloze boxveerklem aansluiting voor het bevestigen van kabels. Dit Quick-Connect systeem zorgt ervoor dat de kabel betrouwbaar, permanent en met een constante klemdruk vast zit. Het is onderhoudsvrij, tril- en schokbestendig. Daarenboven kunnen meerdere kabeldiameters probleemloos worden aangesloten en bespaart dit systeem tot 75% installatietijd.

Tenslotte is Bals ook fier op de door hun uitgevonden Multi-Grip techniek. Dit is een uniek en optimaal kabelsparend trekontlastingssysteem voorzien van 18 flexibele lamellen met onverliesbare gummidichting. Overigens kunnen verschillende kabeldiameters worden bevestigd.


Declaration of Conformity

Manufacturer: Bals
Availability: In stock
Products specifications
Current 32A
Contacts 5P
Color Red
Products specifications
Current 32A
Contacts 5P
Color Red
