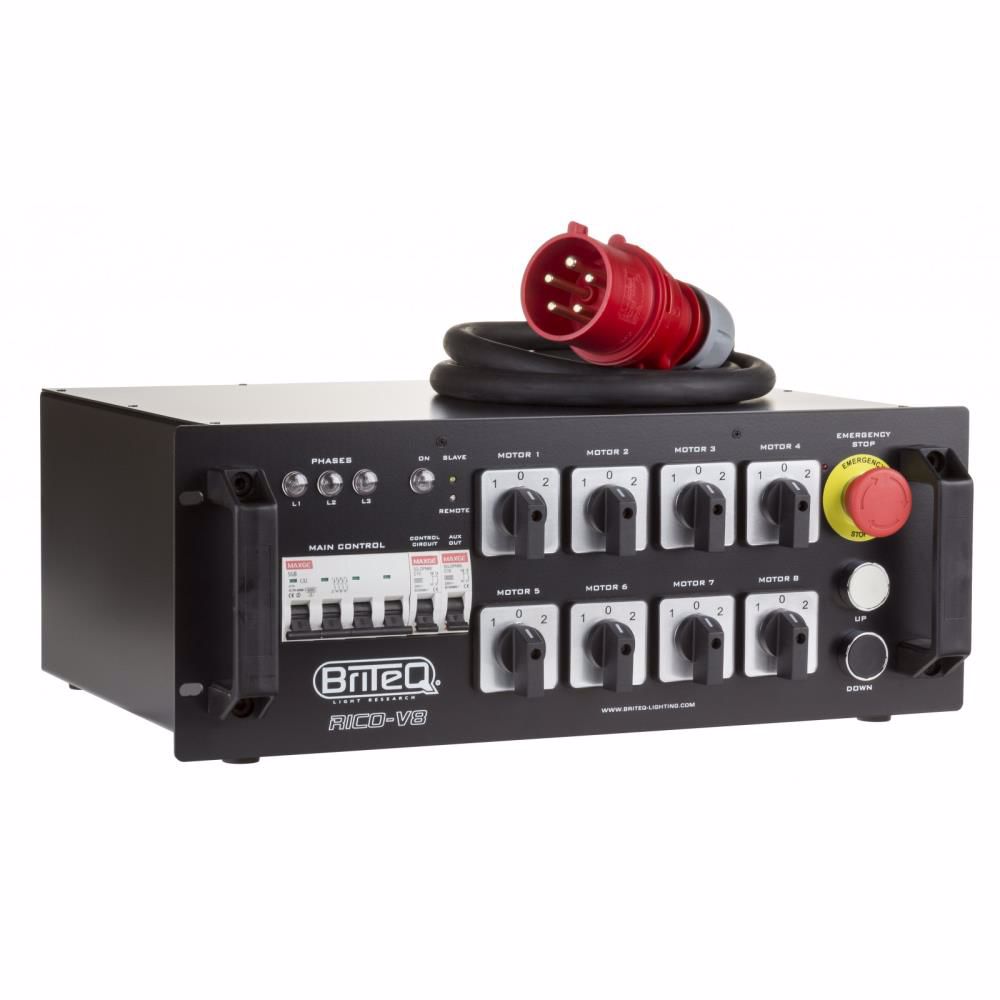

BRI-RICO-V8

8 channel hoist controller with master/slave

Standalone chain hoist motor controller.
Controls up to 8 motors in standalone operation
Fully compatible with the smaller RICO-V4!
Several units can be linked in master/slave using the link in/out on the back panel:
- Easy control for a larger number of chain hoists.
- Simultaneous hoist control using the UP/DOWN buttons on the master controller.
- Centralized Emergency stop on the master controller.
- Slave indicator led.
Manual phase inversion switch for each output.
Choice of different outputs for maximum flexibility (rental companies!):
- 4x individual CEE16 4pole 16A outputs
- 2x 16PIN multichannel industrial rectangular connector, Harting^® compatible
- 2x 19PIN multichannel industrial round connector, Socapex^® compatible
- 1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use.
Remote control input (XLR) with led indicator to connect the [RICO-REMOTE] (optional, order code: 4650).
Phase indicators to easily check if the 3phases are available.
32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected.
Two C16 (16A - 1P+N) 2-POLE automatic circuit breakers for control circuit + auxiliary output.
Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug
CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass
Extremely robust 19"/4U metal housing.
Designed and build in Europe to the highest international safety standards!

Manufacturer: BRITEQ

Availability: In stock
