HAR-09300105425

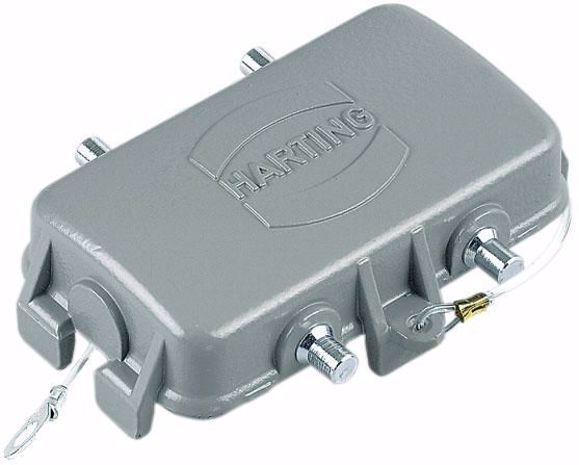

Cover 10E/42DD - Grey

Artikelnummer 09 30 010 5423 Beschrijving DIE CAST METAL COVER FOR HOODS Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Protection cover for hoods Description of hood/housing With fixing cord Metal Type High construction Low construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 10 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 7037 (dust grey) Net weight 92.4 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: Out of stock (On request)
Products specifications
Material Steel
Contacts 10P
Color Grey
Products specifications
Material Steel
Contacts 10P
Color Grey
